Vivotek VC8201-M11 Split IP Camera System, 1 Megapixel Dome Cameras
Split IP Camera System



Alternative Views:


Split IP Camera System

Purchase from a merchant you can trust!

CCTV Camera Pros Rating

Click to see our customer reviews.

Our Price: $749.99



Availability:: Usually Ships in 24 Hours
Product Code: VIVOTEK-VC8201-M11


Add PoE?:


Discontinued
Description

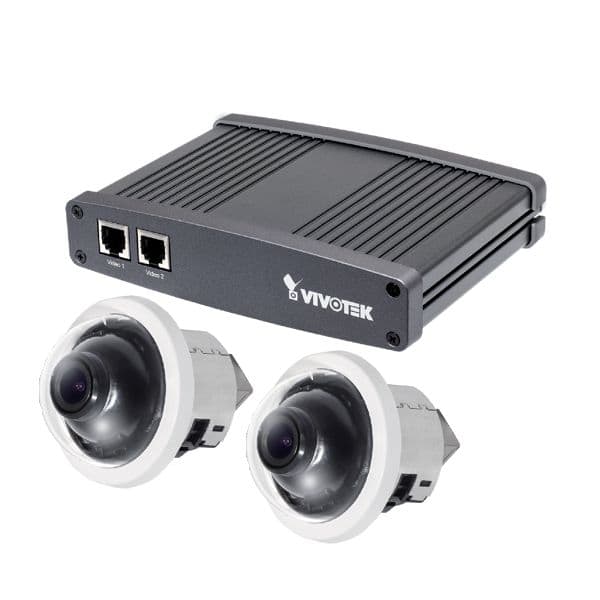

The Vivotek VC8201-M11 is a Split IP Camera System in which the camera unit and video core are separated. The separate design of the Vivotek VC8201-M11 makes the camera unit much smaller and allows it to blend into the environment with ease. This version of the VC8201 includes 2 - 1 Megapixel dome cameras that are connected to the core unit using the included 8 meter / 26 foot cables (Maximum distance the cameras can be from the video core unit).

Important Update! CCTV Camera Pros no longer supplies Vivotek products. CCTV Camera Pros highly recommends Viewtron IP cameras and NVRs. This is our best selling BNC and IP product line by far.


Viewtron IP Cameras (Vivotek Replacement)

IP cameras

2023 Update! CCTV Camera Pros highly recommends Viewtron IP cameras for customers looking for a Vivotek replacement. They cost less, perform better, and the remote camera viewing apps are the best. They are also ONVIF compliant so you can use them with our best selling Viewtron IP camera NVRs or any 3rd party NVR that is ONVIF compliant. We can help you plan your system migration from Vivotek to Viewtron. You can email us at vivotek@cctvcamerapros.net. We also have Viewtron AI security cameras that have advanced analytics functions such as vehicle detection, person detection, face detection, facial recognition, traffic counting, people counting, and license plate recognition (LPR).


Viewtron NVRs (Vivotek Replacement)

IP Camera NVR

We also have a complete line of Viewtron IP camera NVRs available in 8ch, 16ch, 32ch, and 64ch models. Our Viewtron NVRs have AI object detection software and license plate detection software built-in. There is NO additional or recurring software licensing. They also include the best remote security camera viewer apps and software available. All Viewtron NVRs are ONVIF compliant, so they also work with existing Vivotek IP cameras and all other ONVIF compatible brands.


The cameras are capable of recording in 1280 x 800 resolution at a full 30 frames per second. A fixed 3.6mm lens provides an 86° horizontal angle of view. WDR Pro Enhancement allows the camera to capture high quality video in high contrast lighting. It works by combining the brightest part of the image with the darkest part to create one highly detailed image.

The whole system can be powered by either 12V-DC or POE 802.3af, allowing for both data and power to be run over one Cat-5E cable. A Micro SD / SDHC / SDXC Card Slot on the video core allows for local recording of video clips and snapshots. The camera units have built-in Microphones for audio recording.

Like all Vivotek camera, the VC8201 includes a 32 channel central management software for video management and recording.

Vivotek VC8201-M11 Features:

  • 3.6mm Fixed Lens
  • 2 - 1 Megapixel Dome Cameras
  • 1280 x 800 at 30 Frames Per Second
  • 1 Megapixel CMOS Image Sensor
  • 1.05 Color Lux Rating
  • POE 802.3af Compliant
  • Tampering Detection
  • WDR Pro Enhancement
  • Remotely Accessible
  • 3D Digital Noise Reduction
  • H.264 and MJPEG Video Compression
  • Micro SD / SDHC / SDXC Card Slot
  • Includes Vivotek 32ch Central Management Software
  • 8 Meter / 26 Foot Video Cables Included
  • ONVIF Support

Vivotek VC8201-M11 Specification

Vivotek VC8201-M11 Specification

Product Dimensions

Vivotek VC8201-M11 Dimensions

Vivotek VC8201 Installation


Included in the box

Vivotek VC8201-M11 Included


PoE for IP Camera

This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.

Single Port PoE Injector
4 Port PoE Switch
4 Camera PoE
8 Port PoE Switch
8 Camera PoE
16 Port PoE Switch
16 Camera PoE

Please refer to these diagrams, to learn more about how to wire IP cameras using a PoE injectors or a PoE switch.
