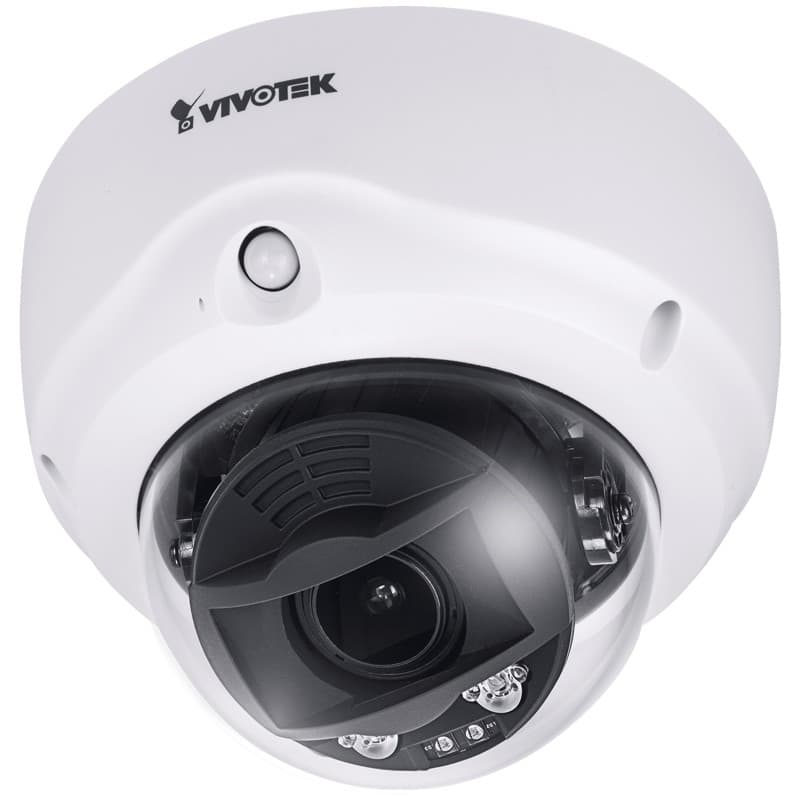

Vivotek FD9165-HT Motorized Fixed IP Dome Camera, Remote Focus, 4~9mm
Motorized Fixed IP Dome Camera


Motorized Fixed IP Dome Camera

Our Price: $699.99

Availability:: Usually Ships in 24 Hours
Product Code: VIVOTEK-FD9165-HT

Add PoE?:


The Vivotek FD9165-HT is a motorized fixed IP dome camera featuring a recording resolution of 1920 x 1080 at up to 60 frames per second. The Vivotek FD9165-HT motorized fixed IP dome camera also features a 2 Megapixel Progressive CMOS image sensor together with a 4 ~ 9mm Motorized Varifocal Lens to provide a 46° ~ 120° horizontal angle of view that the user can adjust remotely from the camera's web interface.

Important Update! CCTV Camera Pros no longer supplies Vivotek products. CCTV Camera Pros highly recommends Viewtron IP cameras and NVRs. This is our best selling BNC and IP product line by far.

Viewtron IP Cameras (Vivotek Replacement)

IP cameras

2023 Update! CCTV Camera Pros highly recommends Viewtron IP cameras for customers looking for a Vivotek replacement. They cost less, perform better, and the remote camera viewing apps are the best. They are also ONVIF compliant so you can use them with our best selling Viewtron IP camera NVRs or any 3rd party NVR that is ONVIF compliant. We can help you plan your system migration from Vivotek to Viewtron. You can email us at vivotek@cctvcamerapros.net. We also have Viewtron AI security cameras that have advanced analytics functions such as vehicle detection, person detection, face detection, facial recognition, traffic counting, people counting, and license plate recognition (LPR).

Viewtron NVRs (Vivotek Replacement)

IP Camera NVR

We also have a complete line of Viewtron IP camera NVRs available in 8ch, 16ch, 32ch, and 64ch models. Our Viewtron NVRs have AI object detection software and license plate detection software built-in. There is NO additional or recurring software licensing. They also include the best remote security camera viewer apps and software available. All Viewtron NVRs are ONVIF compliant, so they also work with existing Vivotek IP cameras and all other ONVIF compatible brands.

The built-in infrared illuminators have an effective range of 50 meters / 164 feet and allow the camera to continue recording in low or no light environments. The Smart IR II technology used on this camera prevents the image from whiting out by increasing or decreasing the IR intensity as objects move about the focal range of the camera. It also adjusts the angle of the LEDs based on the current angle of the lens. To provide clearer images, the 3D Digital Noise Reduction helps to reduce the graininess of the image. This is especially useful when the camera is in black and white mode with the IR LEDs activated.

The all new H.265 video compression allows the camera to use less storage capacity while recording, in addition, the new compression also allows the camera to use less bandwidth when viewed remotely. When paired with the Smart Stream III technology, the H.265 video compression has been shown to reduce both storage, and bandwidth consumption by as much as 90% over H.264.

The WDR Pro II Enhancement feature allows the camera to provide highly detailed image quality in environments with ultra bright or dark back lighting.

The tri axis mechanical design allows the camera to be mounted to either a wall or ceiling with ease. A few more features of the FD9165-HT include POE 802.3AF compliance, a Removable IR Cut Filter and a Built-in Micro SD / SDHC / SDXC card slot for local storage recording.

Vivotek FD9165-HT Features:

  • 4 ~ 9mm Motorized Varifocal Lens
  • 1920 x 1080 at 60 FPS
  • 2 Megapixel Progressive CMOS Image Sensor
  • 50 Meter / 164 Foot IR Range
  • Smart IR II Technology
  • 0.002 B/W Lux Rating / 0.04 Color Lux Rating
  • 3D Digital Noise Reduction
  • Removable IR Cut Filter
  • POE 802.3AF Compliant
  • Dual Voltage - 12V-DC / 24VAC Compliant
  • Tampering Detection
  • Remotely Accessible
  • Smart Stream III Technology
  • H.265, H.264 and MJPEG Video Compression
  • Micro SD / SDHC / SDXC Card Slot
  • Includes Vivotek 32ch Central Management Software
  • ONVIF Support

Vivotek FD9165-HT Specification

Vivotek FD9165-HT Specification

PoE for IP Camera

This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.

Single Port PoE Injector
4 Port PoE Switch
4 Camera PoE
8 Port PoE Switch
8 Camera PoE
16 Port PoE Switch
16 Camera PoE

Please refer to these diagrams, to learn more about how to wire IP cameras using a PoE injectors or a PoE switch.
