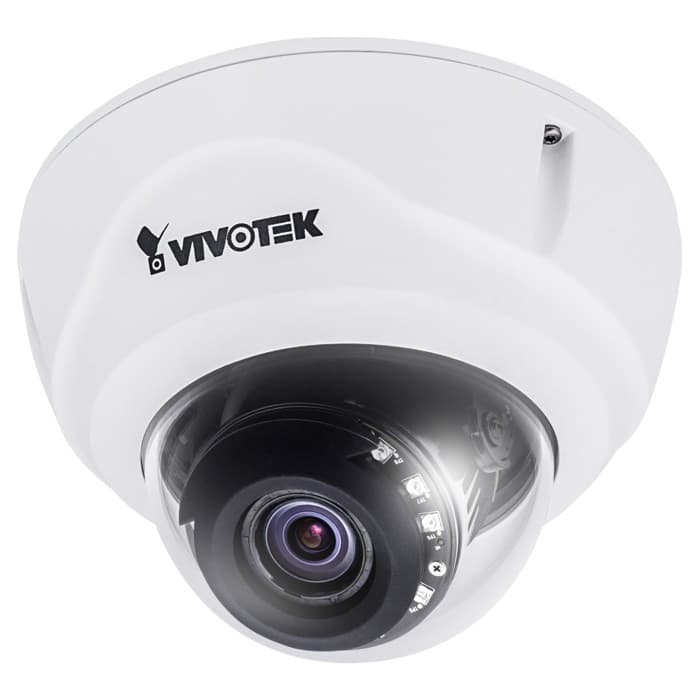

The Vivotek FD9381-HTV is a fixed outdoor dome IP camera featuring a recording resolution of
2560 x 1920 at up to 30 frames per second, or 1920 x 1080 at up to 60 frames per second. The Vivotek FD9381-HTV professional outdoor dome camera features a 5 Megapixel Progressive CMOS image sensor together with a 4 ~ 9mm Varifocal Lens to provide a 45° ~ 93° horizontal angle of view.
infrared illuminators have an effective range of 30 meters / 90 feet and allow the camera to continue recording in low or no light environments. To provide more clear images, the 3D Digital Noise Reduction helps to reduce the graininess of the image, this is especially useful when the camera is in black and white mode.
The all new
H.265 video compression allows the camera to use less storage capacity while recording, in addition, the new compression also allows the camera to use less bandwidth when viewed remotely. When paired with the Smart Stream II technology, the H.265 video compression has been shown to reduce both storage, and bandwidth consumption by as much as 80% over H.264.
WDR Pro Enhancement feature allows the camera to provide highly detailed image quality in environments with ultra bright or dark back lighting. It works by combining the darkest part of the image with the brightest part to create one balanced image. The IK10 / IP66 rated enclosure protects the vital components of the camera from harsh weather, humidity, dust, impact and acts of vandalism.
The tri axis mechanical design allows the camera to be mounted to either a wall or ceiling with ease. A few more features of the FD9381-HTV include
POE 802.3AT compliance, a Removable IR Cut Filter and a Built-in Micro SD / SDHC / SDXC card slot for local storage recording.
Vivotek FD9381-HTV Features:
- 4 ~ 9mm Varifocal Lens
- 2560 x 1920 at 30 Frames Per Second
- 1920 x 1080 at 60 Frames Per Second
- 5 Megapixel Progressive CMOS Image Sensor
- 30 Meter / 90 Foot IR Range
- IK10 / IP66 Rated Enclosure
- 0.001 B/W Lux Rating / 0.04 Color Lux Rating
- 3D Digital Noise Reduction
- Removable IR Cut Filter
- POE 802.3AT Compliant
- Tampering Detection
- Remotely Accessible
- Smart Stream II Technology
- H.265, H.264 and MJPEG Video Compression
- Micro SD / SDHC / SDXC Card Slot
- Includes Vivotek 32ch Central Management Software
- ONVIF Support
Vivotek FD9381-HTV Specification
H.265 Sample Video
PoE for IP Camera
This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about
how to wire IP cameras using a PoE injectors or a PoE switch.
