Automatic License Plate Reader NVR, ALPR ANPR, Recognition Software

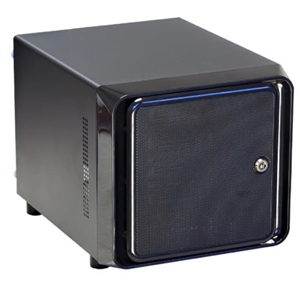

Automatic License Plate Reader




Automatic License Plate Reader

Purchase from a merchant you can trust!

CCTV Camera Pros Rating

Click to see our customer reviews.

Our Price: $2,099.99


Product Code: GV-ALPR


Add LPR License?:


HDD:


OS:


Surveillance Software:


CAT5e Cable:


Monitor:


Warranty:



Description


CCTV Camera Pros builds custom automatic license plate reader NVRs using GeoVision ALPR / ANPR / license plate recognition software. These PC based GeoVision NVRs (network video recorders) come with GV-NVR IP camera software and GV-ASManager software pre-installed.

Customers have their choice to use any compatible GeoVision LPR cameras with these systems. Customers can also add non license plate recognition cameras to these systems. CCTV Camera Pros can design a complete license plate capture system / video surveillance system with additional cameras such as overview cameras. For over 12 years, we have designed custom LPR systems for hundreds of customers around the world including commercial properties, gated entry applications, parking lots, home owners associations, and government facilities.

In addition to the mini desktop case, CCTV Camera Pros also custom builds NVRs using full size desktop towers and rack mount server cases. We can provide a free phone consultation and quote. Need a complete system design that includes LPR cameras, IP cameras, network switches, cable, wireless systems? We can combine all of those into one pre-configured system.

license plate camera system

Above is an installation that consists of a license plater recognition camera and a surveillance overview camera. The LPR camera is mounted low and narrowly focuses in on the area were license plates pass. The overview camera is mounted much higher with a wider angle lens to capture a surveillance overview. This particular system also uses a wireless camera system to transmit the video back to a centralized NVR.


ASManager ALPR / ANPR Software

The GeoVision NVRs that we build for license plate reader applications include GeoVision ASManager software pre-installed. ASManager is the software that enables the ALPR / ANPR application. ALPR stands for automatic license plate reader. ANPR stands for automatic number plate recognition. These two terms are used interchangeably and mean the same thing, which is the ability for a video surveillance system to automatically identify the letters and numbers on license plates.

ALPR / ANPR Software

When the ASManager is used with a valid GV-LPR software license, license plates can be automatically identified by the software and logged into a database. Users can search the license plate database for specific numbers and time frames when plates were recorded. That is what is seen in the above screenshot. You can learn more about the GeoVision GV-LPR software in this PDF file.


Geovision NVR Software

GV-NVR is the name for the GeoVision surveillance software that is installed on these NVRs. It is used in conjunction with the ASManager software. The GV-NVR is a complete video surveillance system package that can record and manage up to 32 cameras. For customers that need to record more than 32 cameras, we can build the GeoVision NVR with GV-VMS software to support up to 64 cameras on one recorder.

GV-NVR supports third-party IP cameras. ONVIF compatible IP cameras are supported. The live security camera view and recorded video playback layout can be easily adjusted with the "easy to use" drag-and-drop function.

GV-NVR comes with a variety of intelligent video analytic software features for to security monitoring and to reduce the need for manual supervision. The built-in Webcam Server allows users to remotely access the live view of their camera as well as recorded video using web browsers, mobile apps for iPhone and Android and the client Remote ViewLog application.

You can download the complete GeoVision GV-NVR software data sheet here. It lists all of the features of the software.


PC Build Specification

This is the specification that we use to build our GeoVision LPR recorders. We custom build these computers based on customer requirements.

  • Mini PC Case with 4 Hot Swap Bays
  • Intel 9th Gen i7 Processor
  • Z390M* Motherboard with 32GB RAM
  • Solid State Drive (SSD) with Windows 10 64-bit Installed & Configured
  • 1TB Video Storage HDD (Upgrades available up to 40Tb)
  • 1TB Dedicated License Plate Snapshot and Database Drive
  • GeForce GT 1030 PCI-e 3.0 x16 Graphics Card w/ DVI & HDMI*
  • Dual Gigabit Ethernet NIC Port
  • Built-in Wireless a/b/g/n/ac Network Card for WiFi Connectivity
  • Built-in Bluetooth
  • Three HDMI Outputs Supporting up to 4K Resolution (4096x2160@30 Hz)
  • 350 Watt 80+ Bronze Certified Power Supply*
  • USB Keyboard & 3 button optical mouse included
  • Genuine Windows Operating System with License installed
  • Free anti-virus software and remote support software installed
  • Case Dimensions: 7.75" x 7.5" x 10" / 19.7cm x 19.1cm x 25.4cm
*Subject to change based on availability. We are constantly improving and upgrading the PC components that we use.

GeoVision License Plate Capture NVR

Geovision NVR

Here is a picture of our mini GeoVision LPR NVR with the front door of the case opened. You can see the four hot-swappable hard drive bays and the two front USB ports. Each of these hard drive ports supports up to a 10TB hard drive for a total of 40 terra-bytes of video surveillance storage if needed.

We custom build these PC based DVR / NVRs using the IP camera software that is included with GeoVision IP cameras. We call these PC builds our GeoVision mini NVRs because we use the smallest possible desktop case that will support all of the hard drive bays, processor, video card, and ram that is required for a commercial grade GeoVision build. Our customers love these mini NVRs!


LPR Cameras

LPR cameras

The GV-ALPR NVRs that we build work great with all GeoVision LPR cameras. Please note that none are included with the recorder. Also, please note that for each LPR camera, you must also add a GV-LPR software license. Each GV-LPR license is good for 1 camera / 1 lane. There are two exceptions. The GV-LPR1200 and the GV-DSP-LPR both include a GV-LPR software license that is built into their hardware. The GV-LPR1200 is 1 megapixel LPR camera. The GV-DSP-LPR is a video server used with an analog LPR camera.


Wireless Security Camera System

CCTV Camera Pros uses these GeoVision NVRs in the design of indoor and outdoor security camera systems. Here is an example of how our GV-NVR mini PC can be used with a wireless IP camera system that connects two separate buildings. For license plate capture applications, it is very common to transmit video from and LPR camera positioned at a gate back to a main building that houses the DVR / NVR.

Outdoor Wireless IP Camera System

This is how it works.

  1. The building on the right houses the GeoVision recorder. It is connected to a POE-SW54 network switch.
  2. There is also a GeoVision IP camera in the building where the NVR is located. It ids also hard wired to the POE switch.
  3. The network uplink port is connected to the receiving antenna of the WIFI-EH9500 outdoor wireless IP camera system using CAT-5 cable.
  4. The building on the left has 2 GeoVision IP cameras installed. Both are hard wired to a POE-SW54 network switch. Please note that the security cameras at both buildings may be installed indoors or outdoors. There can be one or more than one IP camera installed at each location.
  5. The network uplink port is connected to the transmitting antenna of the WIFI-EH9500 system.
  6. This creates a wireless bridge between the two buildings so that the security cameras from both buildings can record to the same NVR.

Want to learn more about how to use a GeoVision NVR to build a wireless camera system? CCTV Camera Pros co-founder, Mike Haldas, wrote this article to help educate customers: Designing the Best Outdoor Wireless Security Camera System with a DVR.


LPR System Quote & Consultation Services

Geovision NVR DVR

CCTV Camera Pros has been a master distributor for GeoVision since 2006. Our system engineers have designed GeoVision video surveillance systems for customers in all 50 US states. We support our installation partners, electricians, and low voltage security installers by designing and pre-configure systems before we ship them. In addition to the custom NVR / DVRs that we build, our technicians can also login to these systems remotely to assist with setup and troubleshooting after they are installed. We provide lifetime technical support for all of the products that we supply.

Please fill out this form to request a free design consultation. If you prefer, you can also send us an email here.
