The Viewtron IP-PTZ-24 is a mini PTZ camera with built-in auto-tracking AI software that can detect and automatically track people and cars. This small auto-track PTZ is a 4mp network IP camera with PoE (power over Ethernet) support, 3x zoom lens, built-in audio surveillance microphone, and built-in IR night vision.
The Viewtron IP-PTZ-24 is enclosed in a IP67 rated weatherproof dome housing so that it can be used for indoor and outdoor installations. The built-in IR LEDs provide infrared illumination up to 60 feet. The motorized 3x zoom lens is equivalent to a 3 to 7mm varifocal lens. CCTV Camera Pros highly recommends using a Viewtron NVR with this IP camera, however, it is ONVIF compliant so that it can be used with any ONVIF compatible NVR (3rd party manufacturer DVRs supported).
The AI software built into this security camera supports human detection, car detection, motor-vehicle detection (bicycles, scooters), and face detection / facial recognition.
Viewtron IP-PTZ-24 Features
- Video Output: Network IP / RJ-45 Network Connection, ONVIF Protocol Compliant
- Video Format: H.264, H.264+, H.265, H.265+
- Supported Resolutions: 4MP ( 2688 × 1520 ), 2MP ( 1920 × 1080 ), 1MP ( 1280 × 720 )
- Video Frame Rate: 30 FPS
- Image Sensor: 1 / 2.7 " Progressive Scan CMOS
- Infrared: Yes. Built-in IR Night Vision. Up to 20 Meter / 60 Feet
- Weatherproof: Yes. IP67 Camera. High quality, corrosion-proof aluminum alloy, stainless steel screws. Completely weatherproof for Indoor / Outdoor Installation.
- Construction: Corrosion Resistant Aluminum Alloy. Stainless Steel Screws
- Style: White Dome, Metal
- Lens: Motorized 3x Zoom. 3mm to 7mm
- Audio: Built-in Audio Surveillance Microphone
- Installation: Ceiling or Wall Mount

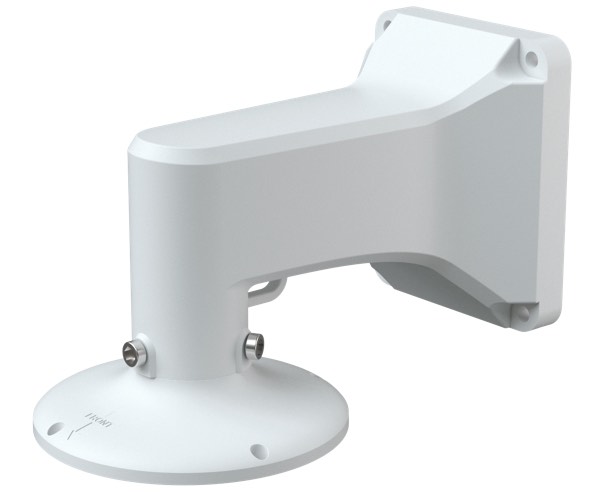

- Mount Options: Optional Wall Bracket, Pole Mount Bracket, Corner Mount Bracket Available
- Remote Viewing: Yes. iPhone App, Android App, Mac Software, Windows Software Included
- Power: DC12V DC Power supply or PoE (Power over Ethernet)
- Image Control: Digital Wide Dynamic Range Function, Back Light Compensation
- SD Card Slot: Yes. Built-in micro SD card slot supports up to 256GB micro SD card
- AI Software: Yes. Human Detection, Vehicle Detection, Bike / Scooter Detection, Perimeter Intrusion Detection, Line Crossing Detection, Face Detection, Facial Recognition.
- Product Specification File: Download Viewtron IP-PTZ-24 Specification
- NDAA Compliant IP Camera
Camera Dimensions
The above image shows the dimensions of the IP-PTZ-24 in millimeters. For reference 116mm = 4.45 inches. 43mm = 1.69 inches. 75mm = 2.95 inches.
Watch this video to see the Viewtron IP-PTZ-24 pan tilt zoom controls from the Viewtron NVR at CCTV Camera Pros office.
Product Specification
Download the complete
Viewtron IP-PTZ-24 product specification here.
View Your Security Cameras Remotely
The IP-D8 works great with
Viewtron hybrid security camera DVRs and Viewtron IP camera NVRs. Viewtron hybrids support BNC cameras and network IP cameras up to 4K resolution. Viewtron NVRs support IP cameras and have built-in power over Ethernet. The remote camera viewing apps are able to connect directly to Viewtron IP cameras and also to DVRs / NVRs.
PoE for IP Camera
This IP camera is PoE (Power-over-Ethernet) compliant which allows the installer to run a single CAT-5e network cable to provide both power and data connectivity to the camera. CAT6 cable can also be used. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about
how to wire IP cameras using a PoE injectors or a PoE switch.
This is an IP67 rated security camera. The weatherproof housing provides 100% protection from dust and 100% protection from water intrusion. This camera can safely be installed outdoors in areas that have a extremely heavy rain and high humidity. It can also be installed in very cold climates and along ocean coasts where there is salt water in the air.
The camera body is made with high quality, corrosion-proof alloy aluminum. Stainless steel mounting screws are included for installation. CCTV Camera Pros highly recommends IP67 security cameras for outdoor installations. You can learn more about
IP67 cameras here.
Free Custom Quotes & Consultations
CCTV Camera Pros designs custom security camera systems for home, business, and government customers all over the world. When you purchase multiple cameras and complete systems, we are able to apply considerable discounts to orders. We realize that some customers need a phone consultation with a professional designer to talk through their system requirements. Please use these links to request help from a CCTV Camera Pro.
This IP camera is NDAA compliant. That means that it is not manufactured by any of the manufacturers on the NDAA (the National Defense Authorization Act) list of banned manufacturers. This security camera does not use any materials from banned manufacturers either. This camera may safely be purchased for government use. You can download
CCTV Camera Pros NDAA letter of guarantee here. You can find additional NDAA compliant security camera systems here.
