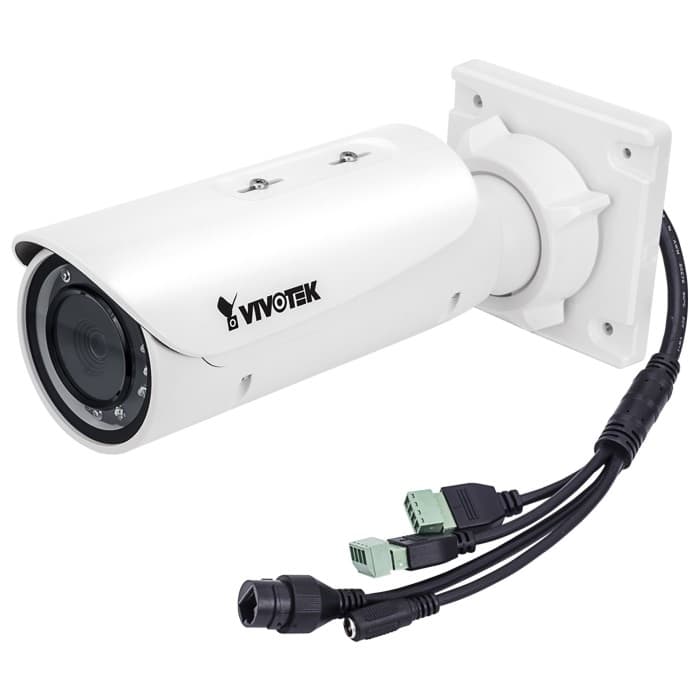

The Vivotek IB836BA-HT extreme weatherproof IP bullet camera features a
2 megapixel CMOS image sensor along with a 2.8 ~ 12mm varifocal lens, providing the user with an adjustable 34° ~ 112° horizontal angle of view. The Vivotek IB836BA-HT has a recording resolution of 1920 x 1080 at a full 30 frames per second.
IP66 / IK10 rated enclosure enables the IB836BA-HT to withstand harsh weather conditions, temperatures as Low as -4°F, dust, humidity and direct impact, while continuing to provide reliable operation. The mounting bracket included with the camera completely conceals the cable and prevents a vandal from cutting or tampering with it.
For use in low light environments, the IB836BA-HT has a
Color lux rating of 0.1 and a Black & White lux rating of 0.01. If the lux rating drops below the 0.01, the Built-in IR LEDs activate and provide an effective illumination range of up to 30 meters / 90 feet.
Smart IR technology featured on this camera prevents image whiteout by decreasing and increasing the LED intensity as the objects move towards the camera. A Removable IR Cut Filter blocks any unusable infrared lighting that may affect the image clarity and only allows the visible light to pass through, enhancing the image quality.
Micro SD / SDHC / SDXC Card Slot allows for the local storage recording of video clips and snapshots. Further enhancing the image quality is the 3D Noise Reduction Technology that works by reducing the amount of sensor noise in the image.
WDR Enhancement feature is specifically designed for environments with challenging lighting conditions such as a bright background. It works by combining the brightest part of the image with the darkest part to create one highly detailed image similar to that of the human eye.
Like all Vivotek IP cameras, the IB836BA-HT includes a
32 channel central management software that can be installed on a Windows PC and be used to manage up to 32 cameras.
Vivotek IB836BA-HT Features:
- Varifocal 2.8 ~ 12mm Lens (34° ~ 112° Horizontal Angle of View)
- 1920 x 1080 Resolution at 30 FPS
- 1/2.7" CMOS Image Sensor
- 0.01 Lux in B/W Mode / 0.1 Lux in Color Mode
- 30 Meter / 90 Foot Infrared Range
- Smart IR Technology
- Tamper Detection
- Removable IR Cut Filter
- POE 802.3AT Compliant
- Privacy Mask
- Withstands Temperatures as Low as -4°F
- Weatherproof IP66 / IK10 Rated Enclosure
- Remotely Accessible
- WDR Enhancement
- Cable Concealing Bracket
- Real-Time H.264 and MJPEG Video Compression
- Multiple Simultaneous Streams
- Micro SD / SDHC / SDXC Card Slot
- 3D Noise Reduction Technology
- Includes Vivotek 32ch Central Management Software
Quick Installation Guide
Click on the image above for a larger view.
This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about
how to wire IP cameras using a PoE injectors or a PoE switch.
