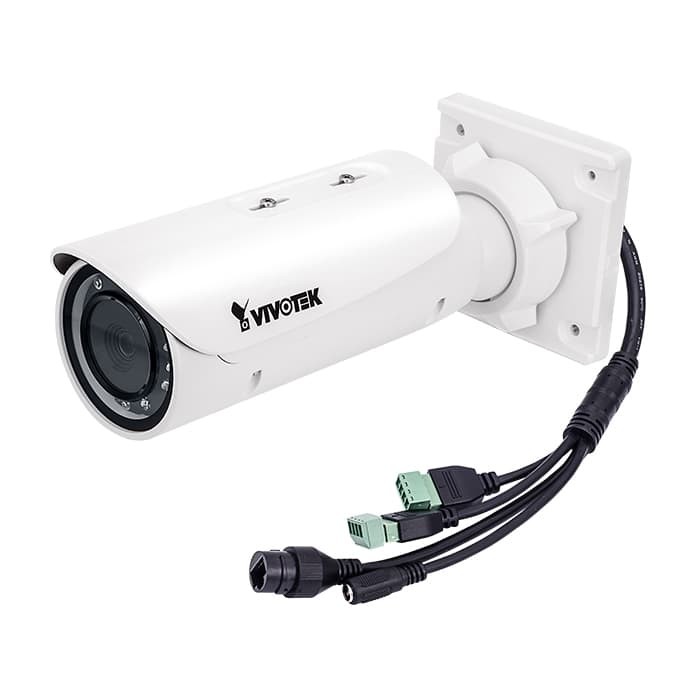

The Vivotek IB9371-HT outdoor bullet network camera features a
3 megapixel CMOS image sensor along with a 3 ~ 9mm varifocal lens, providing the user with an adjustable 39° ~ 82° horizontal angle of view. The Vivotek IB9371-HT has a recording resolution of 2048 x 1536 at a full 30 frames per second.
This camera features an
IP66 / IK10 rated enclosure that allows it to withstand harsh weather conditions, including temperatures as low as -4°F, dust, humidity and direct impact by an object. The mounting bracket included with the camera completely conceals the cable and prevents a vandal from cutting it.
For use in low light environments, the IB9371-HT has a
Color lux rating of 0.01 and a Black & White lux rating of 0.001. If the lux rating drops below the 0.001, the Built-in IR LEDs activate and provide an effective illumination range of up to 30 meters / 90 feet. A Removable IR Cut Filter blocks any unusable infrared lighting that may affect the image clarity and only allows the visible light to pass through, enhancing the image quality.
Micro SD / SDHC / SDXC Card Slot allows for the local storage recording of video clips and snapshots. Further enhancing the image quality is the 3D Noise Reduction Technology that works by reducing the amount of sensor noise in the image. The H.265 video compression allows the IB9371-HT to use hard drive storage and bandwidth more efficiently, as much as 80% more efficient when compared to the H.264 video compression.
WDR Pro Enhancement feature is especially useful in environments with challenging lighting conditions, such as a overly bright or dark background. It works by combining the brightest part of the image with the darkest part to create one highly detailed image similar to that of the human eye. The Smart Stream II Technology lets the user enhance the image quality on a specific area of the camera's field of view, while the rest of the image is at a lower resolution, further conserving bandwidth and storage.
Like all Vivotek IP cameras, the IB9371-HT includes a
32 channel central management software that can be installed on a Windows PC and be used to manage up to 32 cameras.
Vivotek IB9371-HT Features:
- Varifocal 3 ~ 9mm Lens (39° ~ 82° Horizontal Angle of View)
- 2048 x 1536 Resolution at 30 FPS
- 1/2.8" CMOS Image Sensor
- H.265, H.264, and MJPEG Video Compressions
- Smart Stream II Technology
- 0.001 Lux in B/W Mode / 0.01 Lux in Color Mode
- 30 Meter / 90 Foot Infrared Range
- Tamper Detection
- Removable IR Cut Filter
- POE 802.3AT Compliant
- Privacy Mask
- Withstands Temperatures as Low as -4°F
- Weatherproof IP66 / IK10 Rated Enclosure
- Remotely Accessible
- WDR Pro Enhancement
- Cable Concealing Bracket
- Multiple Simultaneous Streams
- Micro SD / SDHC / SDXC Card Slot
- 3D Noise Reduction Technology
- Includes Vivotek 32ch Central Management Software
Click on the image above for a larger view.
This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about
how to wire IP cameras using a PoE injectors or a PoE switch.
