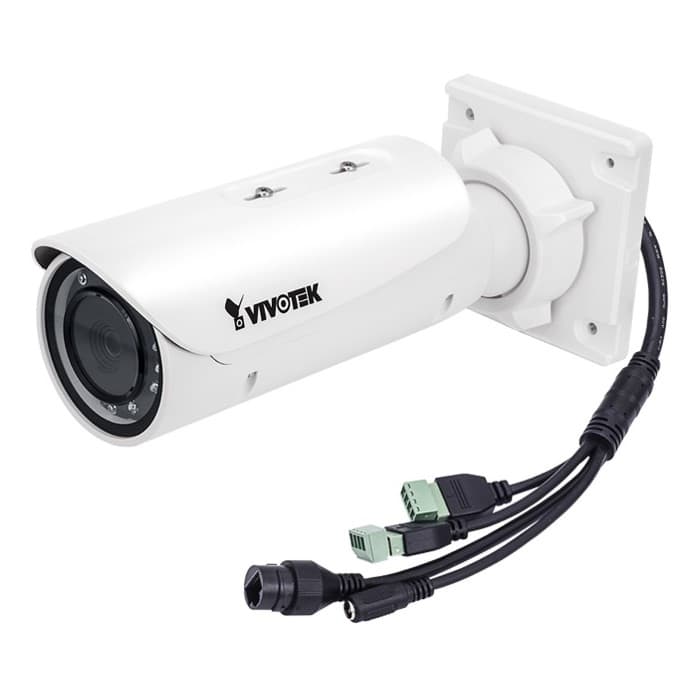

The Vivotek IB9381-HT outdoor IP bullet camera features a
5 megapixel CMOS image sensor along with a 4 ~ 9mm varifocal lens, providing the user with an adjustable 45° ~ 84° horizontal angle of view. The Vivotek IB9381-HT has a recording resolution of 2560 x 1920 at a full 30 frames per second. This camera can also record in 1920 x 1080 at up to 60 frames per second.
Important Update! CCTV Camera Pros no longer supplies Vivotek products. CCTV Camera Pros highly recommends Viewtron IP cameras and NVRs. This is our best selling BNC and IP product line by far.
Viewtron IP Cameras (Vivotek Replacement)
2023 Update! CCTV Camera Pros highly recommends Viewtron IP cameras for customers looking for a Vivotek replacement. They cost less, perform better, and the remote camera viewing apps are the best. They are also ONVIF compliant so you can use them with our best selling Viewtron IP camera NVRs or any 3rd party NVR that is ONVIF compliant. We can help you plan your system migration from Vivotek to Viewtron. You can email us at firstname.lastname@example.org. We also have Viewtron AI security cameras that have advanced analytics functions such as vehicle detection, person detection, face detection, facial recognition, traffic counting, people counting, and license plate recognition (LPR).
Viewtron NVRs (Vivotek Replacement)
We also have a complete line of
Viewtron IP camera NVRs available in 8ch, 16ch, 32ch, and 64ch models. Our Viewtron NVRs have AI object detection software and license plate detection software built-in. There is NO additional or recurring software licensing. They also include the best remote security camera viewer apps and software available. All Viewtron NVRs are ONVIF compliant, so they also work with existing Vivotek IP cameras and all other ONVIF compatible brands.
This camera features an
IP66 / IK10 rated enclosure that allows it to withstand harsh weather conditions, including temperatures as low as -4°F, dust, humidity, and direct impact by an object or vandal. The mounting bracket included with the IB9381-HT completely conceals the cable and prevents it from being cut or damaged.
For use in low light environments, the IB9381-HT has a
Color lux rating of 0.04 and a Black & White lux rating of 0.001. If the lux rating drops below the 0.001, the Built-in IR LEDs activate and provide an effective illumination range of up to 30 meters / 90 feet. A Removable IR Cut Filter blocks any unusable infrared lighting and only allows the visible light to pass through, enhancing the image quality.
Micro SD / SDHC / SDXC Card Slot allows for the local storage recording of video clips and snapshots. Further enhancing the image quality is the 3D Noise Reduction Technology that works by reducing the amount of sensor noise in the image. The H.265 video compression allows the IB9381-HT to use hard drive storage and bandwidth more efficiently, as much as 80% more efficient when compared to the H.264 video compression.
WDR Pro Enhancement feature is especially useful in environments with challenging lighting conditions, such as an overly bright or dark background. It works by combining the brightest part of the image with the darkest part to create one highly detailed image similar to that of the human eye. The Smart Stream II Technology lets the user enhance the image quality on a specific area of the camera's field of view, while the rest of the image is at a lower resolution, further conserving bandwidth and storage.
Like all Vivotek IP cameras, the IB9381-HT includes a
32 channel central management software that can be installed on a Windows PC and be used to manage up to 32 cameras.
Vivotek IB9381-HT Features:
- Varifocal 4 ~ 9mm Lens (45° ~ 84° Horizontal Angle of View)
- 2560 x 1920 Resolution at 30 FPS
- 1920 x 1080 Resolution at 60 FPS
- 1/1.8" CMOS Image Sensor
- H.265, H.264, and MJPEG Video Compressions
- Smart Stream II Technology
- 0.001 Lux in B/W Mode / 0.04 Lux in Color Mode
- 30 Meter / 90 Foot Infrared Range
- Tamper Detection
- Removable IR Cut Filter
- POE 802.3AT Compliant
- Privacy Mask
- Withstands Extreme Temperatures as Low as -4°F
- Weatherproof IP66 / IK10 Rated Enclosure
- Remotely Accessible
- WDR Pro Enhancement
- Cable Concealing Bracket
- Multiple Simultaneous Streams
- Micro SD / SDHC / SDXC Card Slot
- 3D Noise Reduction Technology
- Includes Vivotek 32ch Central Management Software
Quick Installation Guide
Click on the image above for a larger view.
This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.
Please refer to these diagrams, to learn more about
how to wire IP cameras using a PoE injectors or a PoE switch.
