HD CCTV Security Cameras Compatible with Night Owl DVRs

Selectable AHD, HD-TVI, HDCVI, Analog CCTV Video Modes

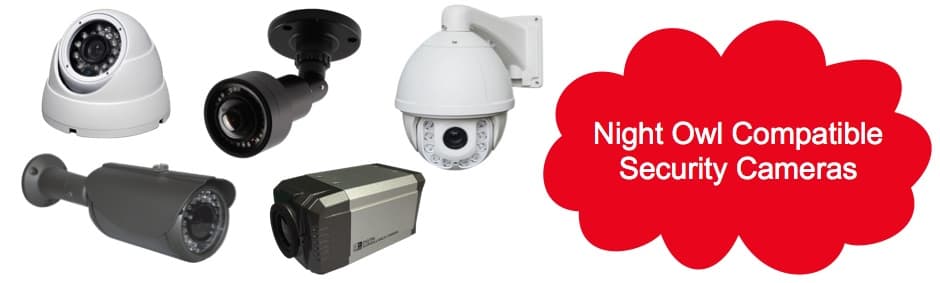

Night Owl Compatible Security Cameras

4-in-1 HD over coax security cameras are the ultimate in compatibility because they can be used with the following types of DVRs: AHD, HD-TVI, HDCVI, or analog CCTV. Installers can very easily select the video mode using the small joystick that is connected to the camera's video cable.

These 4-in-1 cameras can provide security system owners with an upgrade path to high definition if they currently use an analog CCTV DVR. Using the same 4-in-1 camera, an owner can use their current analog DVR and later purchase a high definition video recorder (AHD, HD-TVI, or HDCVI compatible). When ready, the installer can easily switch the camera into the HD mode when the new DVR is in place.

Video Mode Selector Joystick

4-in-1 HD over Coax Camera Video Selector Joystick

The above image shows the video selector joystick on one of our 4-in-1 cameras. The joysticks are attached in-line with the video and power lead cable of the camera. Installers can change the video mode of the camera by holding the joystick in one of the 4 directions for 5 seconds. For example: UP = AHD, Down = HD-TVI, Left = HDCVI, Right = CVBS (analog CCTV).

Each camera model's selection directions are different. The selection modes are documented in the manual that is included and also on each product page for your reference. These joysticks also typically provide access to the camera's OSD configuration screen if applicable.

Coax Cable for Night Owl Compatible Security Cameras

One of the advantages of HD over Coax security cameras is that they can use the same RG59 coax cable as traditional analog CCTV cameras and the cable runs can be just as long (max distance about 800 feet). Our RG59 Siamese cable options have been tested with our HD cameras and are guaranteed by CCTV Camera Pros to work with the 4-in-1 cameras that we supply.

Spools of RG59 Siamese Cable
(including connectors and tools)

Premade Siamese Cable Cable
(connectors come attached)

Using CAT5 Cable with Night Owl DVRs

In addition to RG59 coax cable, HD cameras can also be wired using CAT-5 / CAT-5e cable by using video baluns. Video baluns convert the UTP cable in CAT5 to BNC connections on the camera and DVR end of the cable run. You can learn more about video baluns for HD over coax cameras here.

HD over Coax DVRs

If you want to use one of the supported HD video modes, be sure to purchase a compatible HD DVR. CCTV Camera Pros offers hybrid DVRs that work with both HD-TVI, AHD and standard definition CCTV cameras. We highly recommend our iDVR-PRO hybrid DVRs for analog CCTV and HD over coax installations. You can learn more about these HD over coax compatible DVRs here.

HD over Coax Camera Test Monitor

Are you looking for a test monitor to use when installing your HD over coax cameras? We have test monitors that work with AHD, HD-TVI, and HDCVI cameras Click here to learn about the HD over coax test monitors that we supply.

DVR Compatibility

Looking for a replacement camera for an existing DVR from another manufacturer? Just about every DVR manufacturer is making HD-over-Coax type DVRs that are compatible with at least one of the following video formats: AHD, HD-TVI, HDCVI. The 4-in-1 HD security cameras on this page are compatible with most DVRs from every major manufacturer including (but not limited to): Swann, Samsung, Night Owl, Lorex, QSee, Defender, Dahua, HikVision. If you need help figuring out which type of security camera format your DVR requires and if one of our cameras will work with it, please contact us here.
