GV-4016 | Geovision 16 Channel DVR Card | H.264 Hardware Compression

Home >

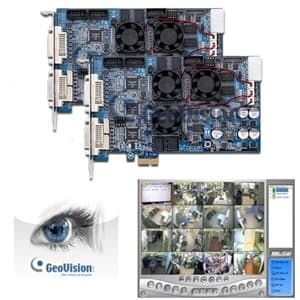

GV-4016 16 Ch. Geovision H.264 Hardware Comp. DVR Card, 240 FPS

Alternative Views:

Geovision GV-4016 (2-GV-4008 Cards) DVR Card Features:

16 video inputs
16 audio inputs
480 FPS recording (30 FPS per channel)
Full D1 Resolution (720 X 480) @ 30 FPS = real time
Stackable (2 cards per PC)
64 bit Windows Now Supported

Geovision GV-4016 Specifications

Price: $1,399.99

Product Code: GV-4016

Discontinued

Description

Please Note: The Geovision GV-4016 is no longer manufactured, please refer to the Geovision GV-5016.

The Geovision GV-4016 16 channel DVR Card (GV-4008 X 2) provides up to 16 video and 16 audio channels with up to 480/400 fps (30 fps per channel) full D1 recording using H.264 hardware compression. This new technology is employed to enhance the live image of full D1 resolution (720 X 480) without DSP Overlay. Even in grid displays, the largest division can remain at the high-quality D1 resolution. The Geovision GV-4016 now supports Windows 64 bit operating systems.

Geovision GV-Series Surveillance DVR Software Features

All of the Geovision DVR cards feature Geovisions GV-Series surveillance software. The GV-Series software supports up to 32 channels in DVR / NVR, Hybrid IP and CMS applications. In addition to supporting 32 channels of video, the GV-Series surveillance software also audio recording as well. Some of the features include advanced motion detection, video loss detection, object counting and privacy masks. It can also be programmed to send email notifications when the motion or alarm features are triggered. Remote viewing and configuration is possible through Windows PCs, iPhone and Android mobile phones. Users can also view on a Mac PC. The GV-Series software also enables the user to remotely back up captured video from a PC. For more information on the Geovision GV-Series surveillance software please refer to the specification sheet and image gallery below.

Geovision GV-Series Specification Sheet

Geovision Image Gallery

Geovision GV-4016 Installation Guide

View / Print the Geovision VG-4016 Card Installation Instructions
