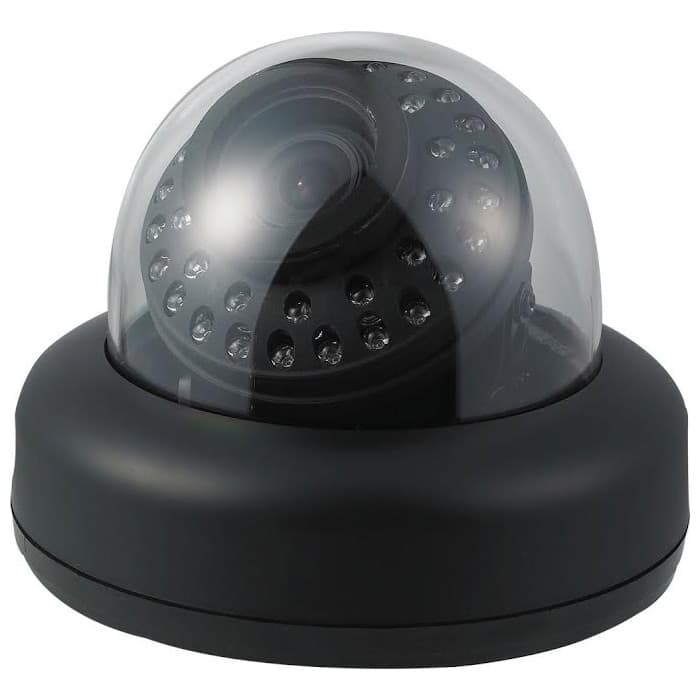

The DPRO-9620VF dome infrared camera that is available in a black or white base (model DPRO-9620VFW). This IR dome has a 1/3" Sony Super HAD CCD II image sensor in this camera supports 700 TV lines of resolution / 960H CCTV in color (day mode) and B&W night mode (low light and zero light infrared).
The 2.8 to 12mm varifocal lens provides control over the focal length of the camera. The varifocal lens allows one to customize the field of view from extremely wide to tightly zoomed in. For example, mounting the camera 20ft away from a cash register, allows one to closely monitor that point of sale when the lens is adjusted to the 12mm setting.
The DPRO-9620VF(W) infrared dome security camera has 35 built-in IR LEDs and supports two selectable night vision modes. The first solely using its low light (0.0001 LUX) capacity and Sense-Up intensifier technology. The second night mode utilizes the infrared LEDs which support up to an 80-foot infrared viewing range in total darkness.
In addition to being a high-end IR / night vision camera, the 9620VF also has built-in WDR (Wide Dynamic Range) capability which allows for compensation in foreground & background lighting; which essentially combines the darkest part of the image with the brightest part of the image to produce one highly detailed and balanced image.
Click here to see sample pictures and demo surveillance video footage that was captured in various light environments.

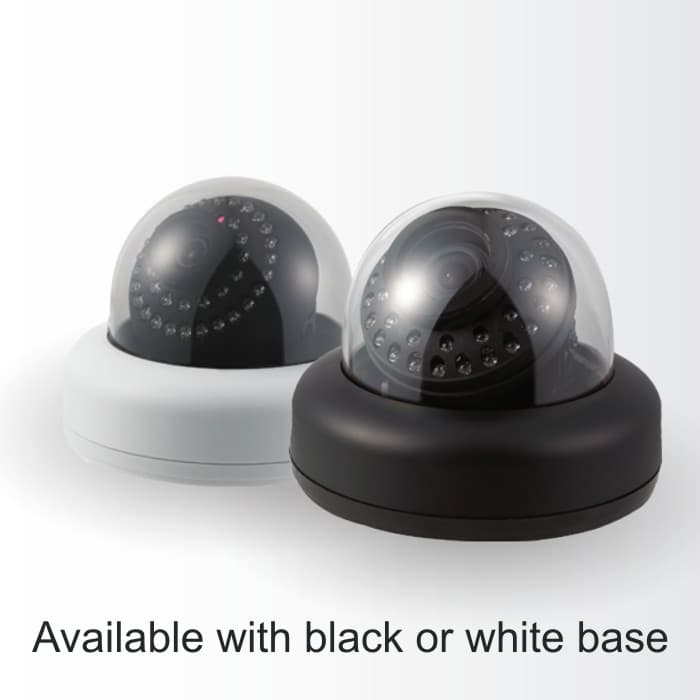

White Base and Black Base Models
The DPRO-9620VF has a black plastic base and is made for indoor use. This dome camera is also available in a white base version here: DPRO-9620VFW dome IR camera.
Dual Voltage Available
This camera is also available in a dual voltage model, the DPRO-520MVF (white base). This allows installers to use their choice of a 12V DC or 24VAC power supply. One of the advantages of using 24 VAC over 12V DC is that you can run the power cable a longer distance without power drop or loss.
Optional Wall Mount Bracket
This is what the DPRO-9620VF dome looks like when installed with the optional wall mount bracket
. If you do not want to use this bracket, the DPRO-9620VF can be installed to a ceiling or wall without it because of the built-in tri-axis camera mount.
DPRO-9620VF Dome Infrared Camera features:
- 1/3" Sony Super HAD CCD II
- High Resolution - 700TVL Color / 720 TVL Black and White / 960H DVR Compatible
- Compatible with Analog CCTV and 960H Surveillance DVRs

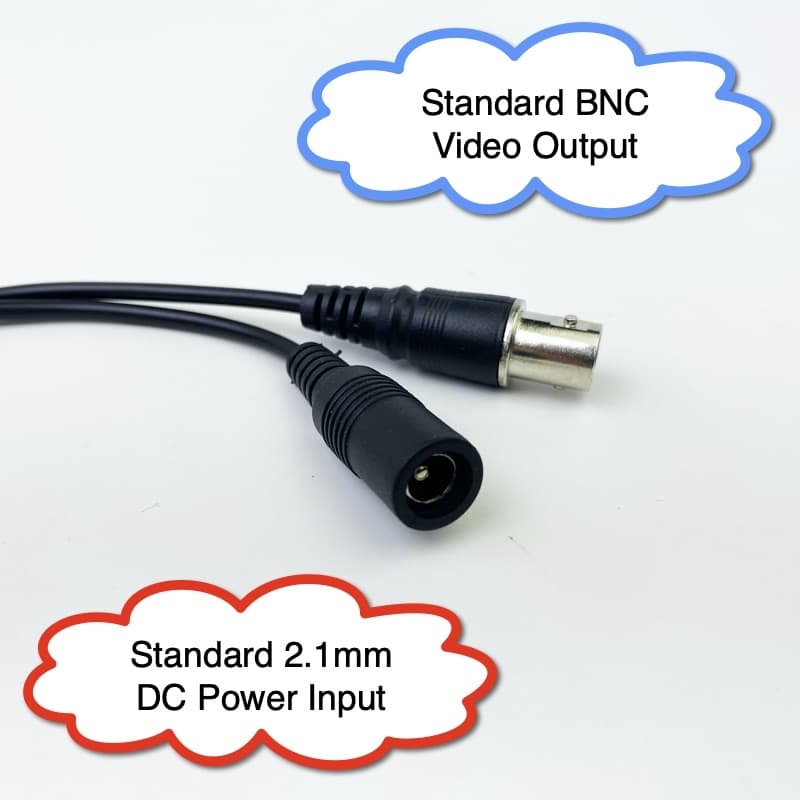

- Video Connector: BNC
- Power Connector: 2.1mm Plug
- 2.8mm ~ 12mm Varifocal Auto Iris Lens
- 35 IR LEDs can produce up to a 75 to 80ft (25m) effective viewing range
- Smart IR allows for a more balanced infrared lighting
- Indoor black dome base / clear plastic dome cover protects the camera
- Motion Detection configuration by enabling or disabling any of its four detection zones
- Tri-axis mount for ceiling or wall installations
- Infrared for low light and zero light applications
- .01 LUX without IRs / 0 LUX with IRs on
- WDR ( Wide Dynamic Range) for more color balanced images
- Advanced On Screen Display (OSD) controls via push buttons and controls: Light sensitivity, exposure, white balance, day/night, digital noise reduction, color, and sharpness adjustments
- Control the Infrared mode: On/Off, Low, Medium, High settings
- DC Voltage 800mA max power consumption (with LED's on)
Recommended Surveillance Installations / Applications
CCTV Camera Pros recommends the DPRO-9620VF for the following types of video surveillance installations and applications.
Indoor surveillance only because this camera is not weatherproof; if an outdoor weatherproof solution is needed, please consider the DPRO-EC550VF2 dome camera.
Installations which require high TVL video resolution
Variable lighting levels, such as bright light, low light or total darkness
Areas with intense background lighting because the camera includes wide dynamic range (WDR)
Ceiling mount or wall mount application using the tri-axis mount
Great for residential, commercial, and government surveillance installations
Recommended to be mounted a total distance of between 5 and 50 feet away
from the area under surveillance. Refer to CCTV camera lens chart
Custom field of view; Camera has a 2.8 to 12mm varifocal lens which allows one to customize the field of view by manually changing the zoom from 2.8 to 12mm.

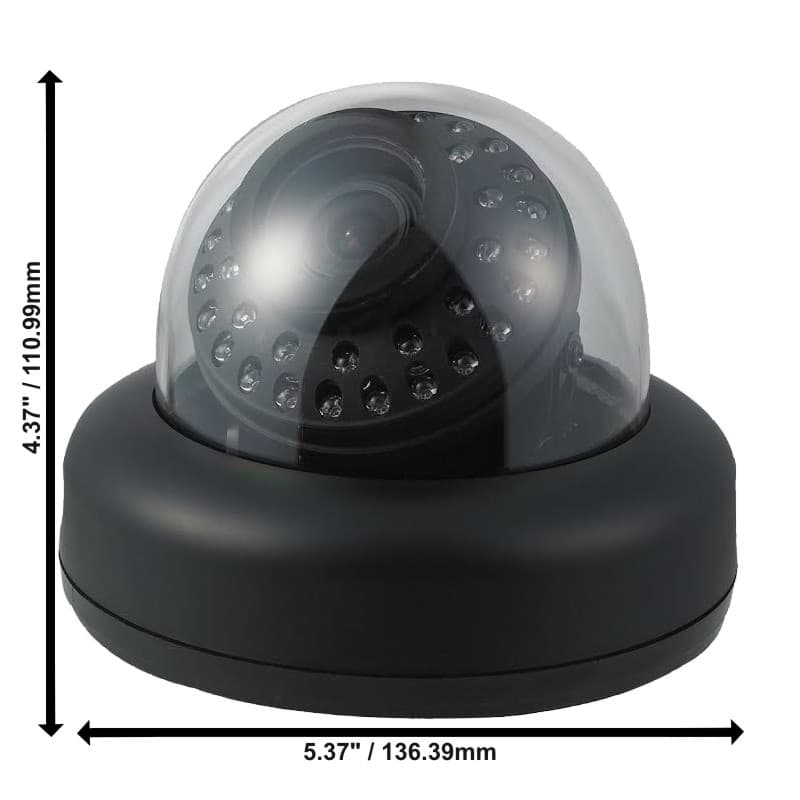

Dome Camera Specification
These 2 sample images were taken using the DPRO-9620VFW which are currently being used in our Palm Beach, Florida office / warehouse. This room is 30 feet long by 15 feet wide. The camera is ceiling mounted 9.5 feet high and centered on the room.
This first image was taken during the day with the office lights on
. The 9620VF is connected to our iDVR-PRO8 video surveillance DVR
and the snapshot function was used to take these two pictures.
The second picture was taken at night with the office lights and computer monitors turned off, thus creating a true zero light test. As you can see from the image below, the 9620VF has no problem illuminating a room 30 feet long by 15 feet wide, in zero light.
Surveillance Images from Latest Generation Camera
The following sample images were captured using the latest generation DPRO-9620VF and iDVR-E8 surveillance DVR
. The DPRO-9620VF dome camera is mounted 8.5 feet high with the lens adjusted to 3.6mm (almost to the widest setting). The room is in CCTV Camera Pros office and is 13 x 21 with 10-foot ceilings.
The first sample photo is with the office fluorescent lights ON so that the camera is in color daytime mode.
This second image was captured with all of the office lights off and one computer monitor on to cast some ambient light in the room. The 9620VF is in nighttime IR mode with its infrared LEDs on.
This last image was captured after Mike turned the computer monitor off in the room to create a zero light environment. There is little to no difference between the ambient light picture and the picture with zero light. This camera does an outstanding job of illuminating a room this size.
This video demonstrates the normal light, low light, and zero light infrared capability of the DPRO-9620VF camera.
This camera uses built-in smart IR technology which allows the camera to automatically adjust the intensity of the infrared illumination provided by the built-in IR LEDs based on the distance objects are located from the camera. Click to learn more about smart IR.
