Vandal Resistant IP Dome Camera

Home >

Vivotek FD8154V Vandal Resistant IP Dome Camera, 1.3 Megapixel, IK10

Alternative Views:

Vandal Resistant IP Dome Camera

Price: $349.99

Availability:: Usually Ships in 24 Hours
Product Code: VIVOTEK-FD8154V

Discontinued

Description

Please Note: The Vivotek FD8154V is no longer manufactured, please refer to the Vivotek Dome Camera page for a replacement.

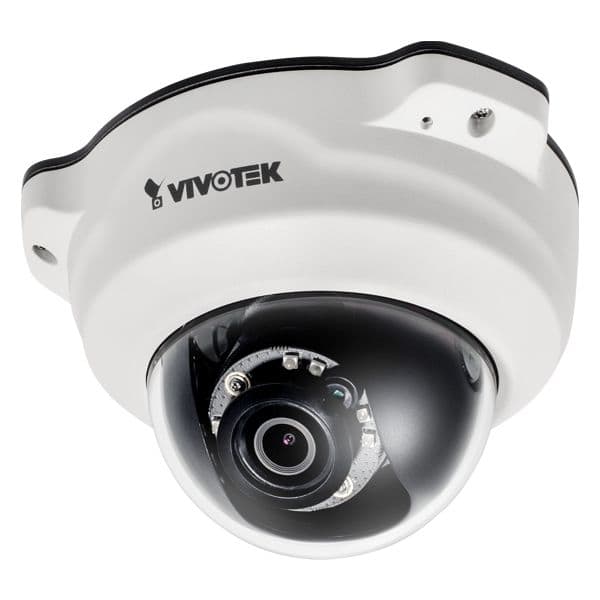

The Vivotek FD8154V is a Vandal Resistant IP Dome Camera featuring a recording resolution of 1280 x 1024 at a full 30 frames per second. The Vivotek FD8154V Vandal Resistant IP Dome Camera features a 1.3 Megapixel CMOS image sensor paired with a fixed 2.8mm Lens for excellent image quality.

The built-in infrared illuminators have an effective range of 20 meters / 60 feet and allow the camera to continue recording in low or no light environments. The FD8154V is enclosed in an IP66 / IK10 rated housing to fully protect the vital components of the camera from harsh weather conditions and acts of vandalism.

The tri axis mechanical design allows the camera to be mounted to either a wall or ceiling with ease. A few more features of the FD8154V include POE 802.3af as main power source, a Removable IR Cut Filter and a Built-in Micro SD / SDHC / SDXC card slot for local storage recording.

The Vivotek FD8154V includes a 32 channel central management software and is also fully compatible with NUUO IP Camera Software for users who want to get the most out of their cameras.

Vivotek FD8154V Features:

2.8mm Fixed Lens
1280 x 1024 at 30FPS
1.3 Megapixel CMOS Image Sensor
20 meter / 60 foot IR Range
Compatible with NUUO IP Software
0.06 B/W Lux Rating / 0.08 Color Lux Rating
Removable IR Cut Filter
POE 802.3af Powered
Tampering Detection
Remotely Accessible
H.264 and MJPEG Video Compression
Micro SD / SDHC Card Slot
Includes Vivotek 32ch Central Management Software
ONVIF Support

Vivotek FD8154V Specification

Included in the box

Vivotek FD8154V Included

PoE for IP Camera

This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.

Single Camera PoE

4 Camera PoE

8 Camera PoE

16 Camera PoE

Please refer to these diagrams, to learn more about how to wire IP cameras using a PoE injectors or a PoE switch.
