Geovision GV-ADR2702 Vandal Proof Dome IP Camera, IR Night Vision, PoE
Vandal Proof Dome IP Camera


Vandal-Proof Dome IP Camera

Purchase from a merchant you can trust!

CCTV Camera Pros Rating

Click to see our customer reviews.

Our Price: $129.99

Product Code: GV-ADR2702

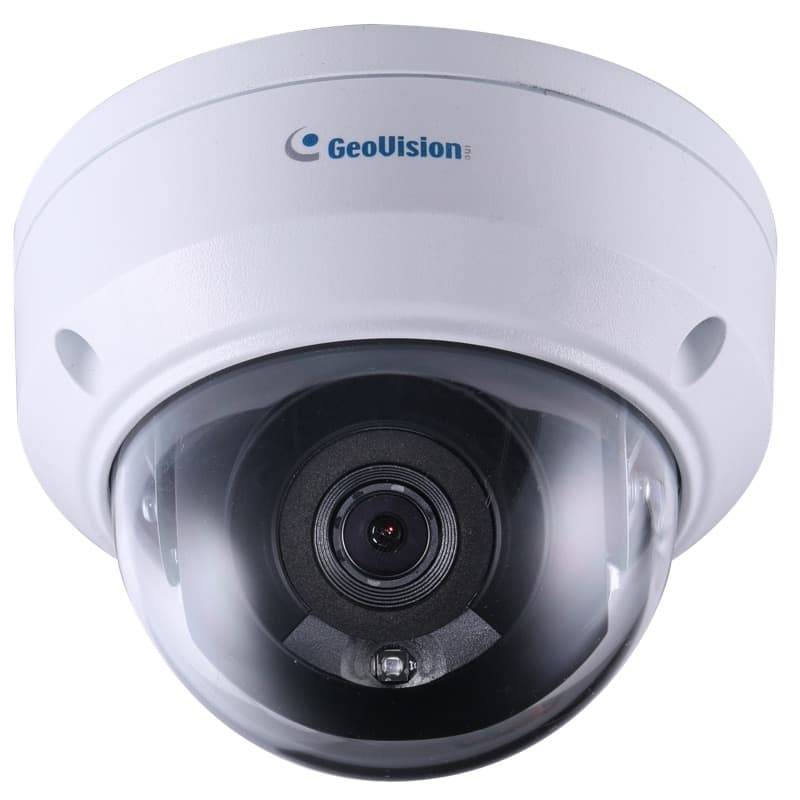

The GeoVision GV-ADR2702 Vandal Proof Dome IP Camera supports infrared night vision up to 30m / 100 feet. The IP67/IK10 outdoor vandal-proof rated enclosure protects the vital components of the camera from harsh weather, dust, humidity, and acts of vandalism.

UPDATE: Recommended Replacement Camera

The XXXXXXXX has been discontinued. You can find the currently available Geovision IP cameras models on this page.

Viewtron IP Cameras

CCTV Camera Pros highly recommends Viewtron IP cameras and Viewtron AI cameras (also network IP format).

The GeoVision GV-ADR2702 includes a Fixed 2.8mm Lens, providing the user with a wide 110° angle of view. A 1/2.7" progressive scan low lux CMOS sensor allows the camera to capture video surveillance at 1080p (2 Megapixel) resolution up to 25 frames per second.

This camera has exceptional low light capabilities with a color lux rating of 0.02 and a black & white lux rating of 0.02. For environments with little to no light, the GV-ADR2702 features Infrared LEDs with an effective range of 30 meters / 100 feet allowing the camera to continue monitoring the area around the clock. The Intelligent IR feature brightens and dims the intensity of the LEDs automatically to prevent the image from whiting out due to IR bounce back. A Removable IR Cut Filter further enhances the image quality by blocking the unusable infrared lighting and only allowing the visible light to pass through.

The GV-ADR2702 includes WDR (Wide Dynamic Range) Enhancement, which enhances the image quality in environments with challenging lighting conditions (such as ultra bright or dark back lighting). It works by combing the darkest part of the image with the brightest part to create one highly detailed image.

This camera can be powered by either the included 12V-DC power adapter or by POE (Power over Ethernet) 802.3AF. The POE feature allows the installer to run both data and power over one CAT5-E cable, however this will require a POE compliant network switch or injector.

The GV-ADR2702 includes a 32 channel central management software with a multitude of features and is remotely viewable from PC's, iPhone, iPad, Android and 3GPP mobile devices.

Note: The Geovision GV-ADR2702 will not work with the GV-SNVR1600 network video recorder.

Note 2: The Geovision GV-ADR2702 is ceiling mountable only. If you wish to wall mount it, the optional wall mount bracket will need to be used.

Geovision GV-ADR2702 Features:

  • Fixed 2.8mm Lens
  • 120° Horizontal Angle of View
  • 1080p / 2MP / 1920 x 1080 Resolution at 30 FPS
  • Triple streams - H.265, H.264 or MJPEG
  • Ceiling mount only (Optional wall mount bracket sold separately)
  • 1/2.7" progressive scan low lux CMOS sensor
  • 0.02 Color Lux Rating
  • 0.02 B/W Lux Rating (Without IR)
  • Maximum Effective IR Range of 30 Meters / 98.4 Feet
  • Intelligent Infrared
  • Removable IR Cut Filter
  • POE 802.3AF Compliant
  • Tampering Alarm
  • WDR (Wide Dynamic Range) Enhancement
  • IP67 / IK10 Vandal Resistant / Outdoor Rated Enclosure
  • Motion Detection
  • 12V-DC or PoE (IEEE 802.3af)
  • Privacy Mask
  • Viewable from PC, iPhone, iPad, Android and 3GPP Mobile Devices
  • Includes 32 Channel Recording Software
  • 31 Languages on Web Interface
  • ONVIF Compliant
  • CE, FCC, RoHS, UL compliant

GV-ADR2702 Product Specification

Download GV-ADR2702 Spec Sheet

Product Dimensions

Geovision GV-ADR2702 Dimensions

32 Channel GeoVision Software

Each GeoVision camera includes a free 32 channel software license which can be used with any GeoVision IP camera. Install the software on a Windows computer and create a PC based surveillance DVR / NVR for your GeoVision cameras. Click here to view the latest GeoVision software specification.

Remote Viewing Support

GeoVision includes many options to view your cameras remotely over a local network and also remotely over the Internet. Remote viewing is supported by both Windows and Mac based PCs.

GeoVision also includes support to view cameras from cell phones and other mobile devices including: iPhone, iPad, iPod Touch, Android, Blackberry, Windows Mobile, Symbian, and other 3G / 3GPP cell phones. GeoVision provides free apps for all of these types of devices.

Some remote viewing methods require use of the NVR software that is included with the camera and some methods can connect directly to the camera and do not require a PC be used. Click here for more information on Geovision remote viewer options.

Geovision Remote View

PoE for IP Camera

This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.

Single Port PoE Injector
4 Port PoE Switch
4 Camera PoE
8 Port PoE Switch
8 Camera PoE
16 Port PoE Switch
16 Camera PoE

Please refer to these diagrams, to learn more about how to wire IP cameras using a PoE injectors or a PoE switch.
