Alnet RT8/200, RT8/240 8 Channel DVR Card, Hybrid, 240 FPS, Real Time

Alternative Views:

Alnet RT8/200 RT8/240 Real Time DVR Card

Alnet Surveillance DVR Card Brochure

Please call for reseller, government, and bulk pricing.

Price: $1,040.00

Product Code: ALNET-RT8

Discontinued

Description

Please Note: The Alnet-RT8 is no longer manufactured. Please refer to the Geovision DVR cards for a replacement.

The Alnet RT8/200, also known as the Alnet RT8/240, is a real time 8 channel DVR Card. This 8 channel DVR card solution consists of (2) PCI format cards (requires 2 PCI slots) and supports 240 frames per recording and display in US NTSC format and 200 FPS in European PAL format. That is 30 frames per second per channel recording (real time recording). The RT8/200 also supports up to 8 channel of audio surveillance using an optional audio input card. All Alnet DVR cards comes complete with the software CD and product manual. The VDR-S server, VDR-C client, CMS mobile are all included. The free iPhone mobile CMS app can be downloaded from the app store to access your Alnet system from iPhone, iPod touch, and iPad devices. Alnet DVR cards and software are compatible with Windows XP, Windows vista and Windows 7 operating systems. Alnet systems can be accessed remotely over the Internet for live viewing from Mac computers. The RT8/240 DVR card from Alnet uses MPEG-4 software compression.

The RT8/200 DVR cards can also be used in conjunction with Alnet IP camera software to create a hybrid surveillance system consisting of both CCTV cameras and IP cameras. The hybrid system can support up to 64 cameras on a single computer consisting of up to 16 CCTV cameras (analog) and up to 48 IP cameras. CCTV Camera Pros also builds custom surveillance DVR / NVRs using Alnet DVR cards and IP camera software to create hybrid surveillance systems. We can build custom DVRs using desktop PCs as well as 4U rack mount servers.

Alnet RT8/200 RT8/240 DVR Card Features

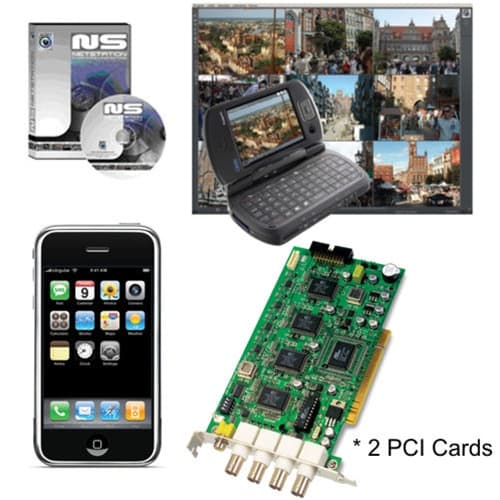

(2) PCI Format DVR Cards
RT Series - Real Time MPEG-4 Software Compression card series
Supports up to 8 CCTV Cameras
Supports up to 8 Channel Audio Microphones with Audio Extension board
240 Frames Per Second Recording NTSC (30 Frames x 4 channels) / 100 FPS PAL
Supported Video Resolutions: 704x480, 640x480, 352x240
Can be used with Alnet IP camera software (up to 64 channels total for hybrid system)
MPEG-4 Software Compression
Compatible with Windows XP, Windows Vista, and Windows 7 operating systems
Scheduled, motion detection, and continuous recording
Compatible with all CCTV cameras that we sell

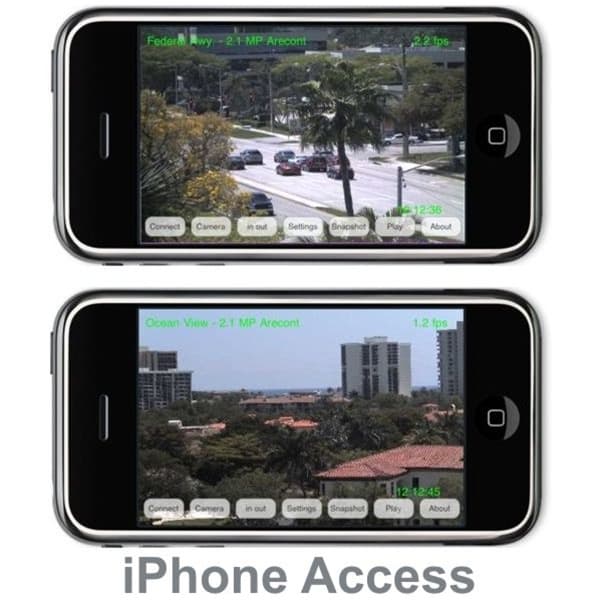

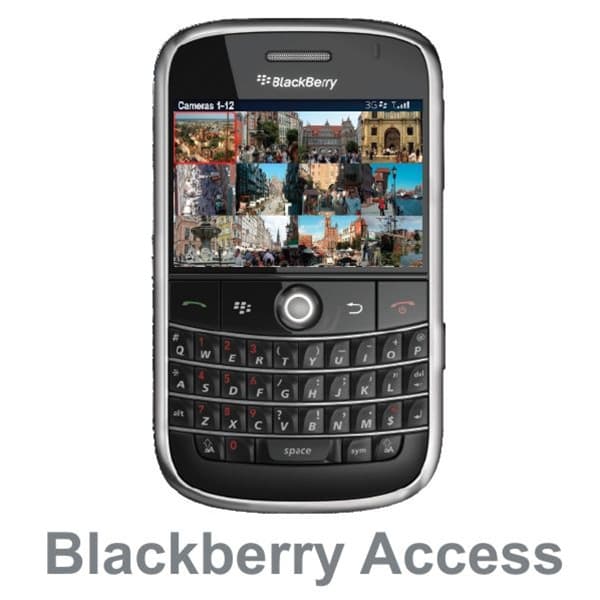

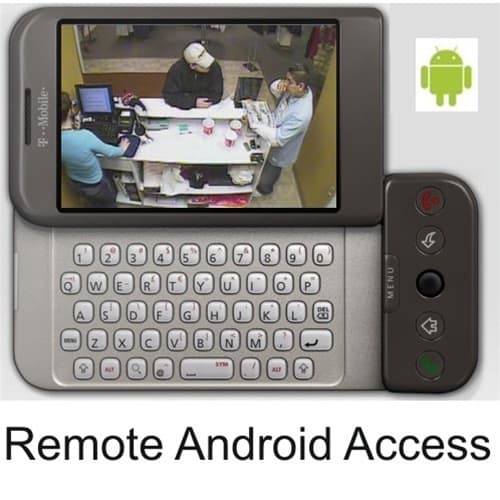

Windows Mobile Phones, SymbianOS cell phones, BlackBerry mobile phones, Android phone, and iPhone using free iPhone mobile CMS surveillance App available in the app store
Includes VDR-S server, VDR-C client and Central Monitoring Software applications on CD
PTZ dome control (mouse, keyboard, Joystick)
Programmable alarm inputs and switches
Advanced archive browser
Watermark for official court evidence
Recording and “live” playback of up to 32 audio channels
E-mail and SMS notification
Mac compatible remote surveillance live viewing

Alnet Surveillance System & DVR Cards Specification

Alnet Surveillance DVR Card Brochure
