Alnet RT8/100, RT8/120 4 Channel DVR Card, Hybrid, 120 FPS
Alnet RT8/100 RT8/120 DVR Card

Alternative Views:

Alnet RT8/100 RT8/120 DVR Card

Alnet DVR Card Brochure
Alnet Surveillance DVR Card Brochure

Please call for reseller, government, and bulk pricing.
Our Price: $724.00

Product Code: ALNET-RT8-100


Please Note: The Alnet-RT8-100 is no longer manufactured. Please refer to the Geovision DVR cards for a replacement.

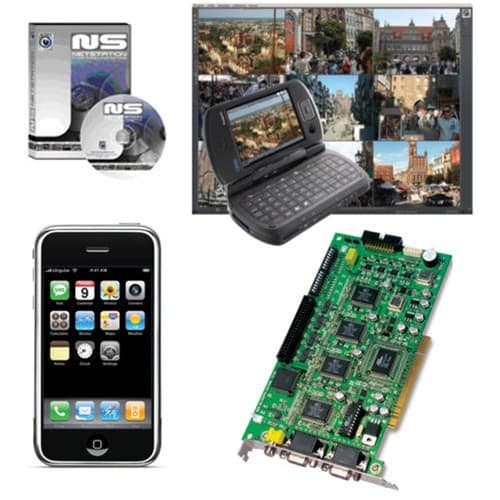

The Alnet RT8/100, also known as the Alnet RT8/120, is an 8 channel DVR Card. This 8 channel DVR card is PCI format and supports 120 frames per recording and display in US NTSC format and 100 FPS in European PAL format. That is 15 frames per second per channel recording (real time recording). The RT8/100 also supports up to 8 channel of audio surveillance using an optional audio input card. All Alnet DVR cards comes complete with the software CD and product manual. The VDR-S server, VDR-C client, CMS mobile are all included. The free iPhone mobile CMS app can be downloaded from the app store to access your Alnet system from iPhone, iPod touch, and iPad devices. Alnet DVR cards and software are compatible with Windows XP, Windows vista and Windows 7 operating systems. Alnet systems can be accessed remotely over the Internet for live viewing from Mac computers. The RT8/120 DVR card from Alnet uses MPEG-4 software compression.

The RT8/100 DVR cards can also be used in conjunction with Alnet IP camera software to create a hybrid surveillance system consisting of both CCTV cameras and IP cameras. The hybrid system can support up to 64 cameras on a single computer consisting of up to 16 CCTV cameras (analog) and up to 48 IP cameras. CCTV Camera Pros also builds custom surveillance DVR / NVRs using Alnet DVR cards and IP camera software to create hybrid surveillance systems. We can build custom DVRs using desktop PCs as well as 4U rack mount servers.

Alnet RT8/100 RT8/120 DVR Card Features

  • PCI Format
  • RT Series - Real Time MPEG-4 Software Compression card series
  • Supports up to 4 CCTV Cameras
  • Supports 4 Channel Audio Microphones with Audio Extension board
  • 120 Frames Per Second Recording NTSC (15Frames x 8 channels) / 100 FPS PAL
  • Supported Video Resolutions: 704x480, 640x480, 352x240
  • Can be used with Alnet IP camera software (up to 64 channels total for hybrid system)
  • MPEG-4 Software Compression
  • Compatible with Windows XP, Windows Vista, and Windows 7 operating systems
  • Scheduled, motion detection, and continuous recording
  • Compatible with all CCTV cameras that we sell

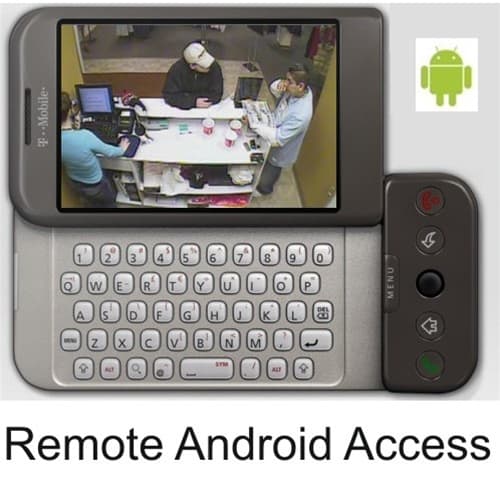

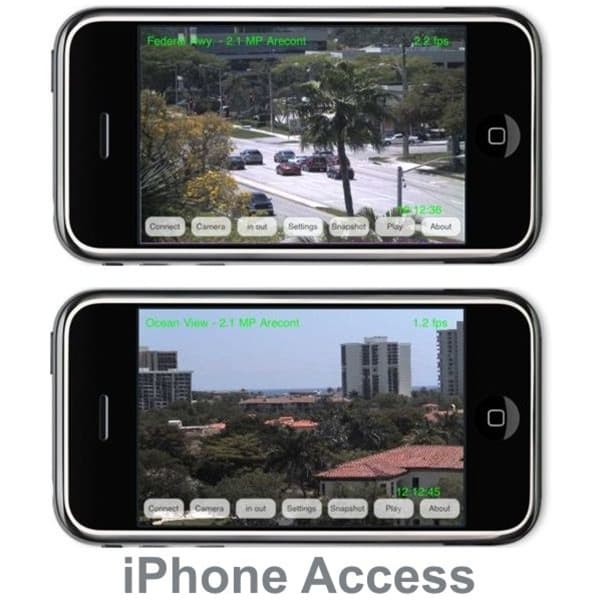

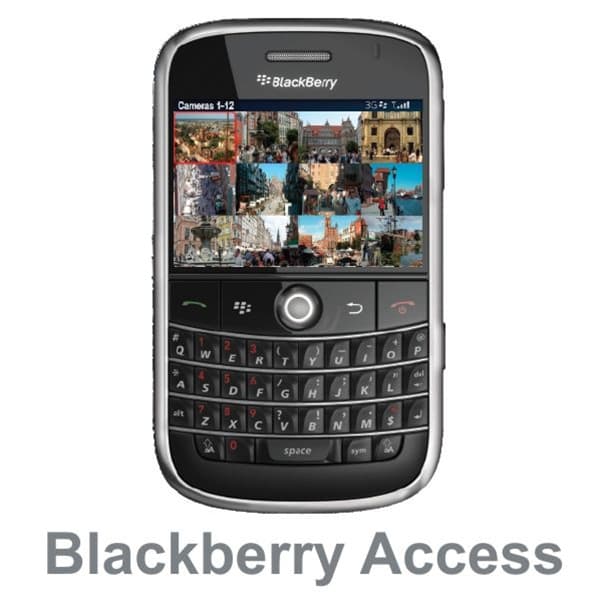

  • Windows Mobile Phones, SymbianOS cell phones, BlackBerry mobile phones, Android phone, and iPhone using free iPhone mobile CMS surveillance App available in the app store
  • Includes VDR-S server, VDR-C client and Central Monitoring Software applications on CD
  • PTZ dome control (mouse, keyboard, Joystick)
  • Programmable alarm inputs and switches
  • Advanced archive browser
  • Watermark for official court evidence
  • Recording and “live” playback of up to 32 audio channels
  • E-mail and SMS notification
  • Mac compatible remote surveillance live viewing

Alnet Surveillance System & DVR Cards Specification

Alnet DVR Card Brochure
Alnet Surveillance DVR Card Brochure
