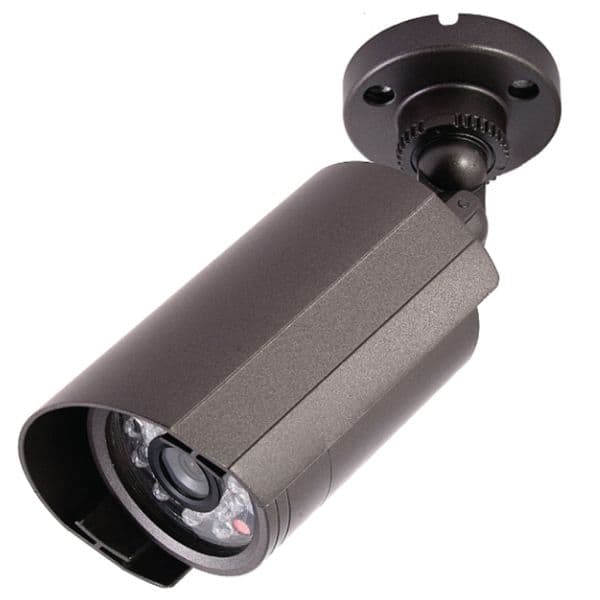

BIPRO-540L6 Outdoor IR Camera, 100ft IR, 1000 TVL, Sony CCD, 960H CCTV
Outdoor IR Camera

Alternative Views:

Outdoor IR Camera

Purchase from a merchant you can trust!

CCTV Camera Pros Rating

Click to see our customer reviews.

Our Price: $129.99

Product Code: BIPRO-540L6

The following items are included:




The BIPRO-540L6 is a 4-in-1 IR security camera that supports analog CCTV, AHD, HD-TVI, and HDCVI, video modes.

Replacement Product

Bullet IR Security camera

This product has been discontinued and replaced by the BIPRO-9004 security camera.

The analog CCTV mode (CVBS) supports the 960H resolution (960 x 480), which is the default setting. AHD, HD-TVI, and HDCVI supports 1080p HD resolution. This is a convenient feature that makes this camera compatible with almost any DVR. It also lets users upgrade to an HD DVR from analog and use the same camera. Installers can easily select the video mode using the OSD joystick.

This outdoor IR camera has 36 infrared LED capable of seeing up to 100 feet in the dark. This IR camera is the same body style and high-quality Sony CCD as the BIPRO-540L4 IR security camera except that it has a 6mm lens which provides a more zoomed in field of view. This camera is weatherproof and can be used for indoor or outdoor infrared surveillance without adding an additional housing. The camera is also equipped with a sun shield to help protect the lens and sensor from direct sunlight damage. The 6mm lens provides an 11.5-foot wide field of view at 15 feet away. This camera and mounting bracket are gray. The mounting bracket of this security camera completely concealed the power and video cable.


  • 2 Megapixel CMOS Image Sensor and Lens
  • 1080p HD Video Resolution (1920 x 1080) in AHD, HD-TVI, HDCVI Modes
  • 960H Resolution (960 x 480) in CVBS / Analog CCTV Mode
  • Video Connector: BNC
  • Power Connector: 2.1mm Plug
  • IP66 Weatherproof Housing for indoor or outdoor surveillance
  • 36 infrared LEDs illuminate up to 30 meters (98 feet)
  • 6mm lens
  • 0.2 Lux Day mode / 0 Lux Night Mode
  • Tri-Axis Mount for Ultimate Flexibility
  • Power & Video Cable Through Mount Design
  • Power supply included

Tri-Axis Mounting Bracket

Outdoor IR Camera Bracket
This camera has a tri-axis mount which gives you the flexibility to install the camera at just about any angle. The video and power cable is completely concealed inside the bracket for a secure installation.

Outdoor IR Camera Specification

IR Camera Specification
Outdoor IR Camera Specification

Smart IR

This camera uses built-in smart IR technology which allows the camera to automatically adjust the intensity of the infrared illumination provided by the built-in IR LEDs based on the distance objects are located from the camera. Click to learn more about smart IR.

Smart IR

Video Mode Selector

BIPRO-540L4 OSD Video Mode Control
