Vivotek FD8361 Outdoor Dome Camera, 2 Megapixel, Day / Night, Infrared
Outdoor Dome Megapixel Camera



Alternative Views:


Vivotek-FD8361

Outdoor Dome Megapixel Camera Spec
Vivotek FD8361 Outdoor Dome Megapixel Camera Specification

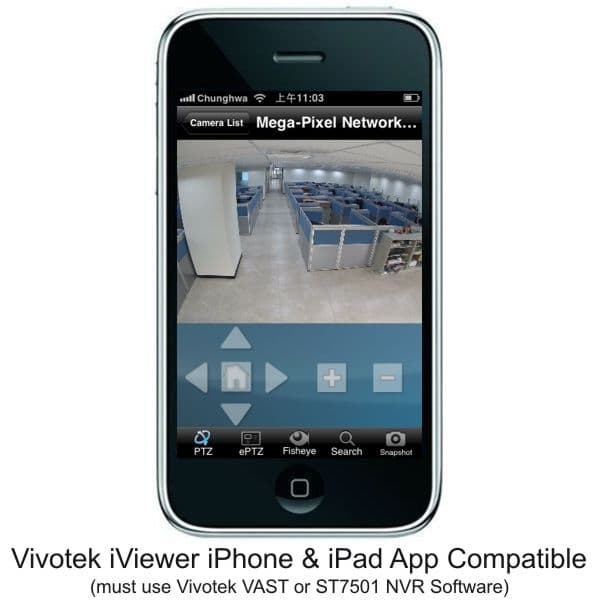

iPhone Remote Viewing

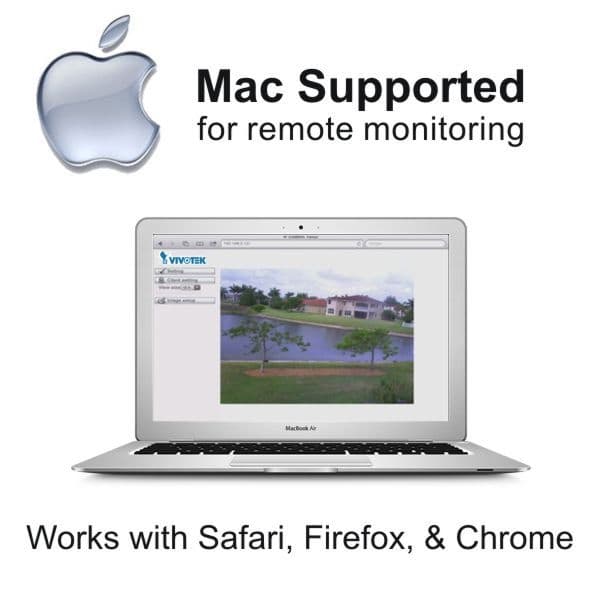

Mac Remote Viewing

Our Price: $699.99



Availability:: Usually Ships in 24 Hours
Product Code: VIVOTEK-FD8361
Discontinued

Description


Please Note: The Vivotek FD8361 is no longer manufactured by Vivotek and has been discontinued.

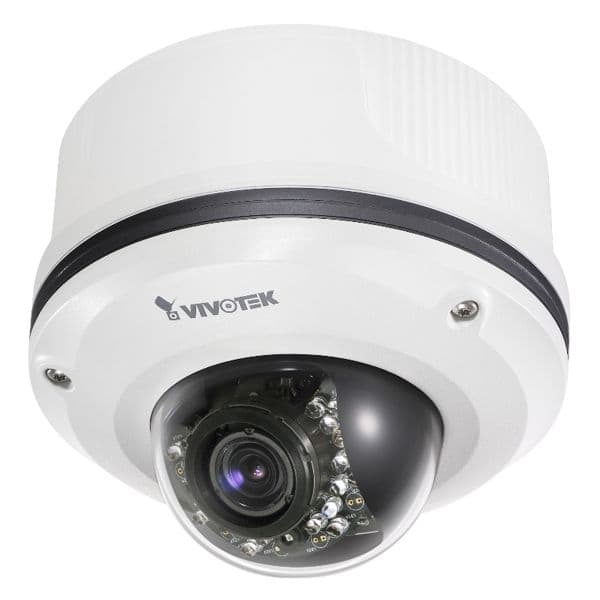

The Vivotek FD8361 is a weatherproof Dome shaped 2-Megapixel Camera with a 3 to 9mm varifocal lens, built in IR illuminators which allows this camera to see in zero light situations, up to 20 meters / 60 feet.

The FD8361 also features vandal proof housing with built in heater and blower, 2-way audio, POE connectivity and an SD card slot for on board storage capabilities.

The FD8361 comes with a Megapixel Sensor, which is able to provide detailed and wide coverage, an AUTO-IRIS to provide better image quality under different lighting environments, a removable IR-cut filter and IR illuminators for superior image quality around the clock.

For protection against the elements, the camera is furnished with an IP66-rated housing and vandal-proof casing to withstand rain, dust, and vandalism. The PoE-powered heater and fan further enhance the FD8361’s performance and reliability in extremely cold and warm weather. The FD8362 weather and Vandal proofing makes this camera especially suitable for outdoor surveillance environments such as parking lots and streets.

The integrated BNC connector allowing the FD8361 to be connected directly to an analog monitor provides enhanced flexibility and usability and ease of installation. Other advanced features include a 3-axis mechanism for flexible installation, 802.3af PoE, SD/SDHC card slot, tamper detection, and SIP-enabled two-way audio.

Additionally, the camera includes high performance H.264 compression technology, bandwidth-efficient streaming, cropping and ePTZ (digitally zoom about an existing high resolution image). With the included ST7501 32-CH central management software, the FD8361 is the ultimate camera for demanding outdoor environments.

Vivotek FD8361 Outdoor Megapixel Features:

  • 2 megapixel progressive scan CMOS sensor
  • 3 - 9mm Varifocal lens
  • AUTO-IRIS perform better image quality under different lighting environment
  • Built in IR illuminators which allows to see up to 20 meters / 60 feet in the dark
  • PoE connectivity
  • IP66 Weatherproof Dome with PoE-powered built in heater and fan
  • SD/SDHC card slot
  • 2-way audio support
  • Removable IR cut filter
  • Tamper detection
  • Vandal-proof casing to withstand rain, dust, and vandalism
  • BNC connector allows for direct connection to analog monitor
  • 3-axis mechanism for flexible installation
  • High performance H.264 compression
  • ONVIF Compliant

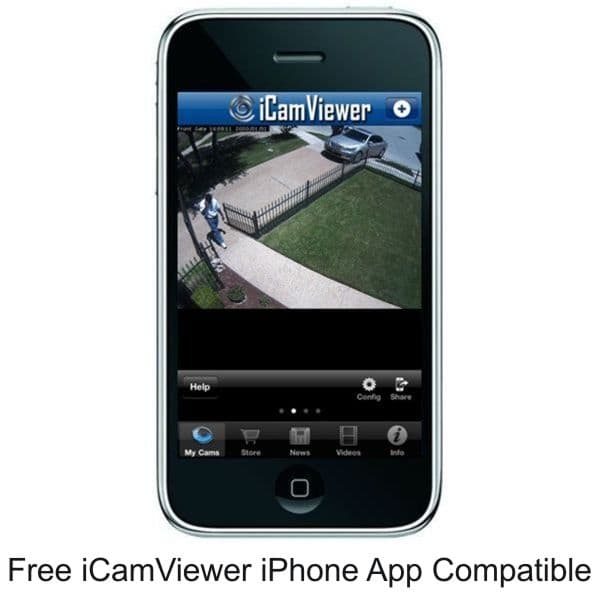

Free iPhone App Download

The Vivotek is compatible with the Free iCamViewer app for network cameras.
iCamViewer IP Camera iPhone App



Vivotek FD8361 Quick Installation Guide

Vivotek FD8361 Quick Installation Guide

Vivotek FD8361 Quick Installation Guide

PoE for IP Camera

This IP camera is PoE (power over Ethernet) compliant which allows the installer to run a single CAT-5e cable to provide both power and data connectivity to the camera. CCTV Camera Pros supplies the following PoE injectors and PoE network switches which are compatible with this camera.

Single Port PoE Injector
4 Port PoE Switch
4 Camera PoE
8 Port PoE Switch
8 Camera PoE
16 Port PoE Switch
16 Camera PoE

Please refer to these diagrams, to learn more about how to wire IP cameras using a PoE injectors or a PoE switch.
