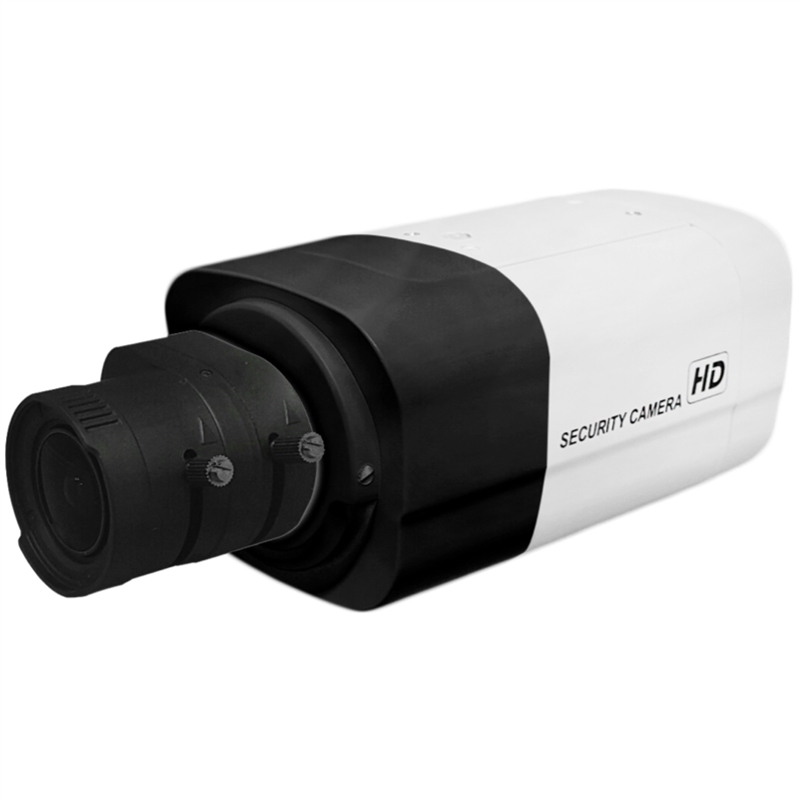

The PRO-680DN100 CCTV Box Camera is an ultra high-resolution CCTV camera made with the new Sony Effio Exview HAD CCD II sensor / image processor which is capable of capturing video at 1000 lines of resolution in color and black & white, 960H CCTV resolution. A 5-100mm varifocal lens with DC auto-iris is included with this camera. Click here to
watch a demo video that shows the range of this lens.
The 680DN100 runs in color during daytime operations and switches automatically to black and white for night mode operation. The "Effio" in the new Sony Effio chip that is used in this camera stands for Enhanced Features and Fine Image Processor. The Effio Sony Exview HAD signal processor is capable of ultra-high resolution, high S/N ratio and high color reproduction for security cameras. The PRO-680DN100 CCTV Box Camera can be used with any of these
CCTV box camera lenses.
CCTV Box Camera Features
- 1/3" Sony Effio Exview HAD CCD II sensor
- 1000 TV Lines - 960H CCTV Resolution
- Video Connector: BNC
- Power Connector: Screw Terminals (2.1mm Pigtail Included)
- Optional security camera housing for Outdoor use
- Includes a 5-100mm vari-focal lens
- Box Style Day Night Security Camera
- 0.001 Lux for very low light surveillance
- Light Sensitivity Control Through On Screen Display
- Easy to Use On Screen Display Settings for Maximum Image Control
- Digital Noise Reduction (DNR)
- Lens Mount: C/CS mount changeable
- Video / DC Drive Iris Control
- DC/AC Dual Voltage

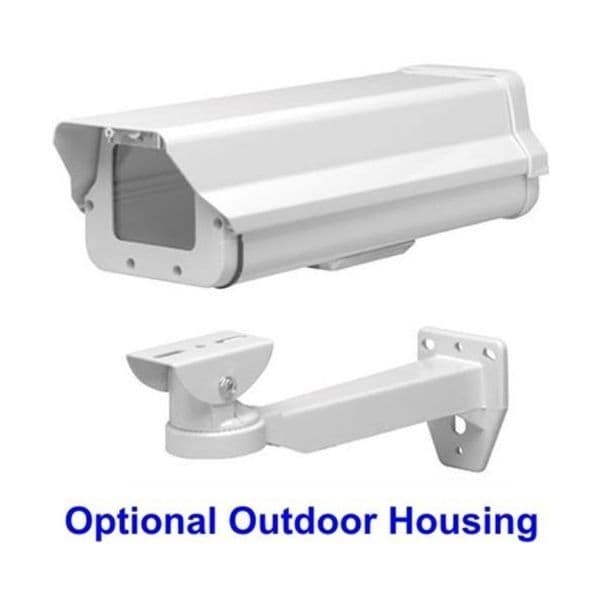

Weatherproof Outdoor Housing
The 680DN series box cameras can be used outdoors when enclosed in an
outdoor camera housing. There are two housing options, one with a powered heater and fan and one without. The wall mount bracket is included with both options.
Rear Camera View
This image shows the rear of the PRO-680DN100 camera. The OSD buttons (set / up / down / left / right) allow the installer to access and navigate the on-screen display to change the settings of the camera's firmware. The BNC connector is the CCTV video output. The power screw terminals can accept a 24V AC or 12V DC power source because this camera is dual voltage.

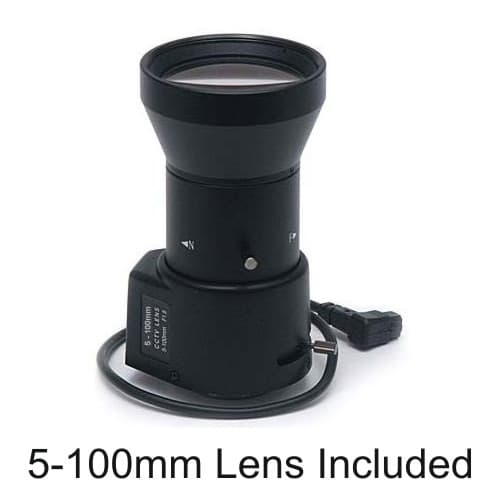

The following video demonstrates the view using a 6mm and 100mm setting of the
5-100 varifocal lens that is included with the PRO-680DN100 camera. Surveillance system installers can adjust the angle of view and zoom depth to any level between 5mm and 100mm.
Product Specification
