The NUUO-PC7000 is a custom built PC based DVR Computer equipped with the 7000 series NUUO DVR cards.  The 7000 series DVR cards use H.264 hardware compression with real time video recording (30 frames per second per camera) and allow us to stack up to 2 DVR cards in one PC.

The NUUO-PC7000 series PC based DVRs can also use NUUO IP camera software licenses in conjunction with the DVR card(s) to create a hybrid analog + IP based digital video recorder.  The hybrid system can support up to 32 cameras on a single dvr computer.

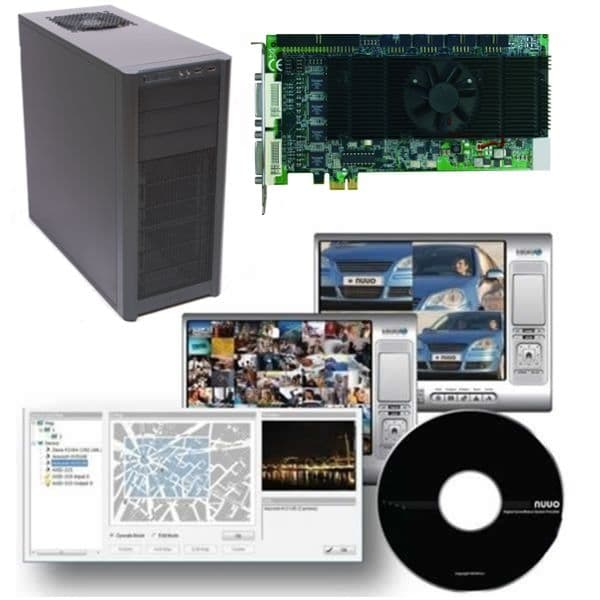

NUUO-PC7000 DVR Computer Configuration

• 4 Channel DVR - (1) SCB-7004 card

• 8 Channel DVR - (1) SCB-7008 card

• 16 Channel DVR -  (1) SCB-7016 card

• 32 Channel DVR - (2) SCB-7016 cards


* Note: The above are the ONLY available configurations.  PC can only be configured with two (2) of any one (1) type of DVR Card.

DVR Computer Includes

• E5200 Pentium Dual Core 2.5Ghz Processor
• 2GB RAM

• 256MB ATI or nVidia Graphics Card
• Windows XP Pro License Installed on 80 GB Hard Drive (CD also included)
• 500 GB Surveillance Grade Hard Drive for Video Storage

• 2 PCI Slots (one for first DVR card and others for future card expansion)

• Realtek Audio
• Keyboard
• USB Optical Mouse
• Commercial Grade Desktop Tower Case


Optional DVR Computer Upgrades

• Intel Core 2 Duo Processor Upgrades

• Upgrade from 2GB to 4GB RAM

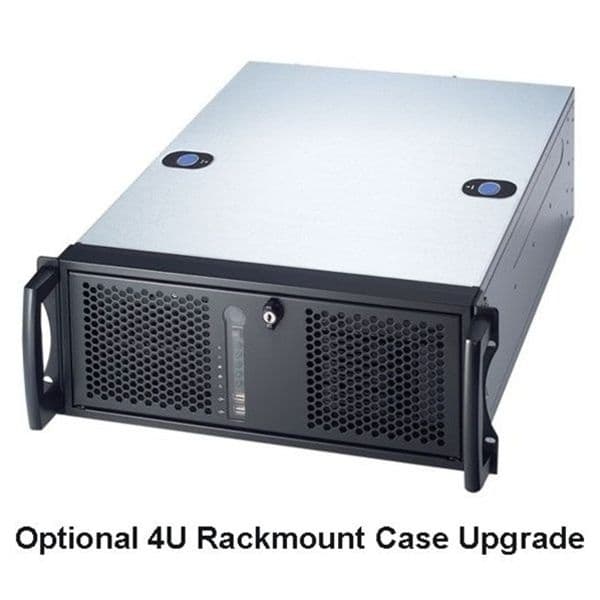

• Upgrade to 4U Rack-mount case
• Video Hard Drive Space Upgrades

• Add NUUO IP Camera Licenses to Create a Hybrid DVR/NVR System
• Add up to 2 DVR Cards per PC


DVR Computer System Software Features

• 30 Frames Per Second Recording (Real Time Motion Video Recording) for all Channels

• Supported Video Resolutions: 704x480, 528x320, 352x240, 176x120

• H.264 Hardware Compression
• Scheduled, motion detection, and continuous recording
• 6 Types of Video Event Detection: General Motion, Foreign Object Detection, Missing Object Detection, Camera Lose Focus Detection, Camera Occlusion Detection, Camera Signal Loss Detection
• Instant Response to Alerts via E-Map Popup, Display on Monitor, Audio Alert, Email Alert, CMS Alert, Trigger Digital Output, Phone Call Alert, Control PTZ Cameras to Track, SMS Alert (Text Message), Upload  Image to via FTP

• Compatible with all CCTV cameras that we sell

• Can be used with NUUO IP camera software to integrate both IP and CCTV cameras

• Click here for a full list of features:  NUUO DVR Card Features

• Click here to download the NUUO DVR Card Brochure

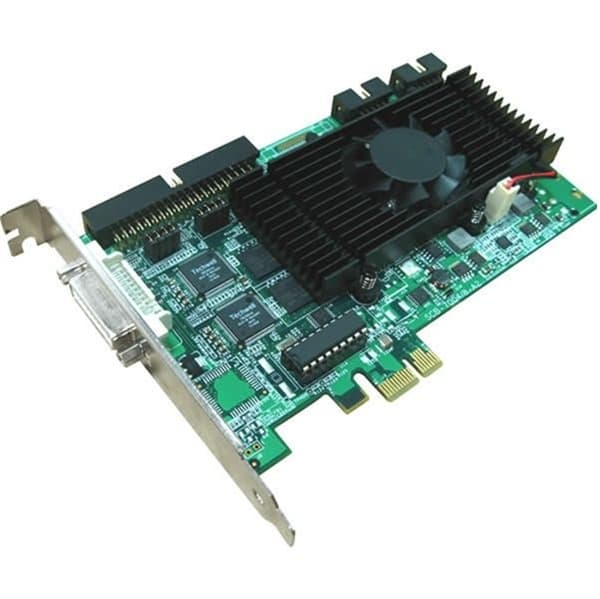

NUUO SCB-7000 Series DVR Card Specification

View / Print the NUUO SCB-7000 Series DVR Card Spec
