NUUO SCB-2004, 4 Channel DVR Card, 60 FPS
NUUO SCB-2004 DVR Card


SCB-2004 4 Channel DVR Card

NUUO DVR Card Brochure
NUUO DVR Card Brochure
Our Price: $289.99


Free Shipping
Product Code: NUUO-SCB-2004

Description

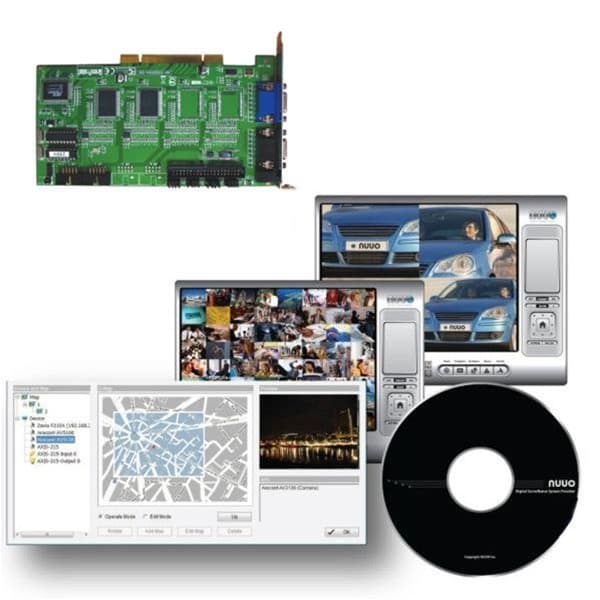

The NUUO SCB-2004 is a 4 channel DVR Card with support 60 frames per recording.  That means 15 frames per second per camera for a total of 4 cameras.  The SCB-2004 also supports two channels of audio surveillance for microphones.  This NUUO DVR card comes complete with the software CD and product manual.  It is compatible with Windows XP and Windows vista operating systems.   The SCB-2004 DVR card from NUUO use MPEG-4 software compression and allow you to stack up to 4 cards in a single PC so that you can grow your system as needed up to 16 channels over time.

The SCB-2004 DVR cards can also be used in with NUUO IP camera software to create a hybrid surveillance system consisting of both CCTV cameras and IP cameras.  The hybrid system can support up to 64 cameras on a single computer (16 channel analog cameras + 48 IP cameras with IP camera licenses).  CCTV Camera Pros also builds custom surveillance DVR / NVRs using NUUO DVR cards and IP camera licenses to create hybrid surveillance systems.  We can build custom DVRs using desktop PCs as well as 4U rack mount servers.

NUUO SCB-2004 DVR Card Features

  • Supports up to 4 CCTV Cameras
  • Supports 2 Channel Audio Surveillance
  • 60 Frames Per Second Recording (15 Frames x 4 channels)
  • Supported Video Resolutions: 704x480, 640x480, 352x240
  • Stack up to 4 DVR cards in a single computer for up to 16 cameras
  • Can be used with NUUO IP camera software (up to 64 channels hybrid system)
  • MPEG-4 Software Compression
  • Compatible with Windows XP & Windows Vista operating system
  • Scheduled, motion detection, and continuous recording
  • 6 Types of Video Event Detection: General Motion, Foreign Object Detection, Missing Object Detection, Camera Lose Focus Detection, Camera Occlusion Detection, Camera Signal Loss Detection
  • Instant Response to Alerts via E-Map Popup, Display on Monitor, Audio Alert, Email Alert, CMS Alert, Trigger Digital Output, Phone Call Alert, Control PTZ Cameras to Track, SMS Alert (Text Message), Upload  Image to via FTP
  • Compatible with all CCTV cameras that we sell
  • Can be used with NUUO IP camera software to integrate both IP and CCTV cameras
  • Click here for a full list of features:  NUUO DVR Card Features
  • Click here to download the NUUO DVR Card Brochure

NUUO SCB-2004 DVR Card Specification

NUUO SCB-1004 Cut Sheet
NUUO SCB-2004 DVR Card Specification
