NUUO SCB-7016, 16 Channel DVR Card, 480 FPS, D1 Resolution
NUUO SCB-7016 DVR Card


SCB-7016 DVR Card

Purchase from a merchant you can trust!

CCTV Camera Pros Rating

Click to see our customer reviews.

Our Price: $999.99

Product Code: NUUO-SCB-7016

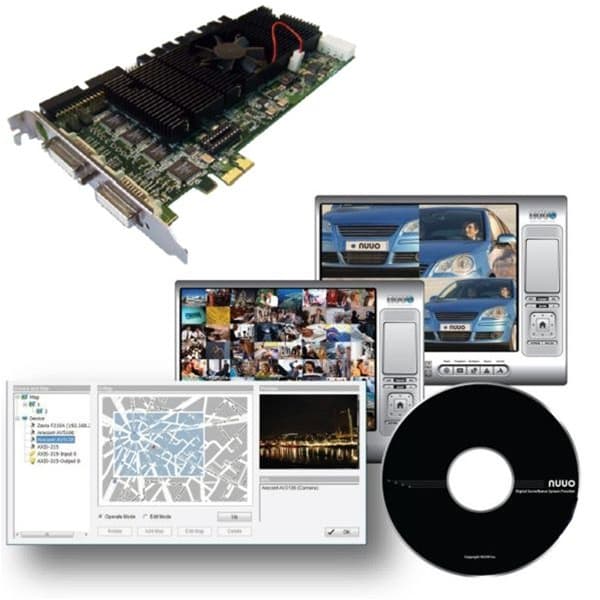

The NUUO SCB-7016 the top of the line 16 channel DVR card. The NUUO SCB-7016 supports 480 frames per second real time recording using D1 resolution (704x480) on all channels. That is 30 frames per second per camera recording (real time motion video). This NUUO DVR card comes complete with the software CD and product manual. It is compatible with Windows XP (32 bit) and Windows 7 (32 and 64 bit) operating systems. SCB-7016 DVR cards use H.264 hardware compression and allow you to stack 2 16 channel DVR cards in a single PC. This means that you can build a 32 channel DVR using two SCB-7016 cards capable of real time recording on all 32 channels at D1 resolution (704x480). This is the only H.264 hardware compression card on the market that is capable of this. You can also stack the SCB-7004 (4 channel DVR card) and the SCB-7008 (8 channel DVR card) with this card.

NUUO DVR cards can also be used in conjunction with NUUO IP camera software to create a hybrid surveillance system consisting of both CCTV cameras and IP cameras. The hybrid system can support up to 64 cameras on a single computer. CCTV Camera Pros is directly partnered with NUUO to bring you the best price on the market. CCTV Camera Pros also builds custom surveillance DVR / NVRs using NUUO DVR cards and IP camera licenses to create hybrid surveillance systems. We can build custom DVRs using desktop PCs as well as rack mount servers.

16 Channel DVR Card Features

  • PCI express x1 Card
  • 16 Channel Video Input
  • 16 Channel Audio Surveillance Microphone Input
  • 480 Frames Per Second Recording (30 Frames x 16 channels = Real Time Motion Video Recording)
  • Full D1 Resolution Recording on all channels
  • H.264 Hardware Compression
  • Supported Video Resolutions: 704x480, 352x240, 176x120
  • Supports stacking two 16 channel cards in a single computer to create a 32 channel DVR (2 PCIe x1 Slots Required)
  • Supports stacking with 4 and 8 channel 7000 series cards also
  • Can be used with NUUO IP camera software (up to 64 channels hybrid system)
  • Compatible with Windows XP (32 bit) and Windows 7 (32 and 64 bit) operating systems
  • Scheduled, motion detection, and continuous recording
  • 6 Types of Video Event Detection: General Motion, Foreign Object Detection, Missing Object Detection, Camera Lose Focus Detection, Camera Occlusion Detection, Camera Signal Loss Detection
  • Instant Response to Alerts via E-Map Popup, Display on Monitor, Audio Alert, Email Alert, CMS Alert, Trigger Digital Output, Phone Call Alert, Control PTZ Cameras to Track, SMS Alert (Text Message), Upload Image to via FTP
  • Compatible with all CCTV cameras that we sell
  • Can be used with NUUO IP camera software to integrate both IP and CCTV cameras
  • Click here for a full list of features: NUUO DVR Card Features
  • Click here to download the NUUO DVR Card Brochure

SCB-7000 Series specification

Model SCB-7004 SCB-7008 SCB-7016
Video Input 4 Cameras 8 Cameras 16 Cameras
Audio Input 4 Channel 8 Channel 16 Channel
Maximum Cards 4 Cards 4 Cards 2 Cards
Display Rate 120 fps (NTSC), 100 fps (PAL) 240 fps (NTSC), 200 fps (PAL) 480 fps (NTSC), 400 fps (PAL)
Recording Rate 120 fps (NTSC), 100 fps (PAL) 240 fps (NTSC), 200 fps (PAL) 480 fps (NTSC), 400 fps (PAL)
Video Resolution NTSC: 176x120; 352x240; 704x480
PAL: 176x144; 352x288; 704x576
Compression Format Hardware Compression H.264
Available I/O Card 1 Card 2 Cards 4 Cards
Hardware Watchdog support
Dimension 167(W) x 121 (H) mm 167 (W) x 121 (H) mm 216 (W) x 126 (H) mm
Operating System
Windows XP (32 bit) and Windows 7 (32 and 64 bit)
CPU Intel Core 2 Duo E5300 Intel Core 2 Quad Q8400 Intel Core 2 Quad Q8400
RAM 2 GB 2 GB 2 GB
HDD 250GB (Depends upon your recording needs)
Motherboard Intel P55 chip, ASUS motherboard recommended
Display card ATI or nVidia chip graphic card
