NUUO SCB-5016, 16 Channel DVR Card, 480 FPS
16 Channel DVR Card


16 Channel DVR Card

NUUO DVR Card Brochure
NUUO DVR Card Brochure
Our Price: $949.99

Product Code: NUUO-SCB-5016


Please Note: The NUUO SCB-5016 is no longer manufactured, please refer to our NUUO DVR Card page.

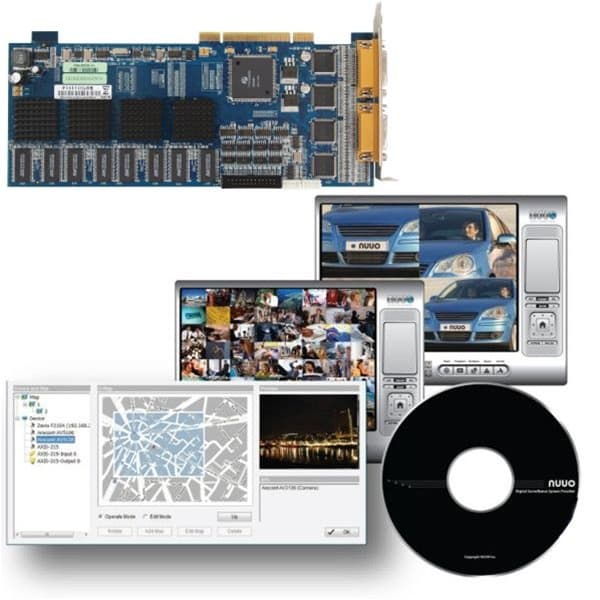

The NUUO SCB-5016 is an 16 channel DVR Card. The NUUO SCB-5016 supports 480 frames per second real time recording. That is 30 frames per second per camera recording (real time motion video). This NUUO DVR card comes complete with the software CD and product manual. It is compatible with Windows XP and Windows vista operating systems. The 5000 series DVR cards from NUUO use H.264 hardware compression and allow you to stack up to 4 DVR cards in a single PC so that you can grow your system as needed up to 64 cameras.

NUUO DVR cards can also be used in conjunction with NUUO IP camera software to create a hybrid surveillance system consisting of both CCTV cameras and IP cameras. The hybrid system can support up to 64 cameras on a single computer. CCTV Camera Pros is directly partnered with NUUO to bring you the best price on the market. CCTV Camera Pros also builds custom surveillance DVR / NVRs using NUUO DVR cards and IP camera licenses to create hybrid surveillance systems. We can build custom DVRs using desktop PCs as well as rack mount servers.

16 Channel DVR Card Features

  • 16 Channel Video Input
  • 16 Channel Audio Surveillance Microphone Input
  • 480 Frames Per Second Recording (30 Frames x 16 channels = Real Time Motion Video Recording)
  • Supported Video Resolutions: 704x480, 528x320, 352x240, 176x120
  • Stack up to Four 5000 Series NUUO DVR cards in a single computer (4 PCI Slots Required)
  • Can be used with NUUO IP camera software (up to 64 channels hybrid system)
  • H.264 Hardware Compression
  • Compatible with Windows XP, Windows 2003 and Windows 2000 operating systems
  • Scheduled, motion detection, and continuous recording
  • 6 Types of Video Event Detection: General Motion, Foreign Object Detection, Missing Object Detection, Camera Lose Focus Detection, Camera Occlusion Detection, Camera Signal Loss Detection
  • Instant Response to Alerts via E-Map Popup, Display on Monitor, Audio Alert, Email Alert, CMS Alert, Trigger Digital Output, Phone Call Alert, Control PTZ Cameras to Track, SMS Alert (Text Message), Upload Image to via FTP
  • Compatible with all CCTV cameras that we sell
  • Can be used with NUUO IP camera software to integrate both IP and CCTV cameras
  • Click here for a full list of features: NUUO DVR Card Features
  • Click here to download the NUUO DVR Card Brochure

NUUO SCB-5016 DVR Card Specification

NUUO SCB-5004 DVR Card Spec
NUUO SCB-5016 DVR Card Specification
