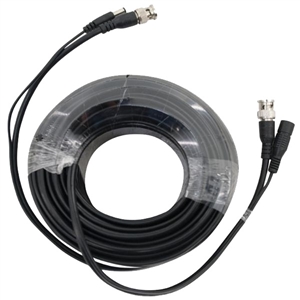

The 25VP is a 25-foot pre-made Siamese cable with BNC connectors for analog CCTV Cameras and HD security cameras. These are pre-made Siamese cables for CCTV camera installations. These plug-n-play Siamese cables run both power and video to CCTV security cameras. This video cable is pre-terminated with a male 2.1mm power plugs on one end and a female 2.1mm plug on the other. The video cable is terminated with male BNC connectors on both ends. The 25VP is compatible with analog CCTV, AHD, HD-TVI, HDCVI, and HD-SDI cameras.
These cables have been tested and work with analog CCTV cameras (CIF, D1, 960H resolutions). They have also been tested and work with HD-over-Coax security cameras in the following resolutions: 720p, 1080p / 2MP, 3MP, 4MP, 5MP, 8MP / 4K.
These pre-made cables will simplify your surveillance system installation by eliminating the need to cut cables and crimp the ends on yourself. If you need to extend the distance of your cable, you can connect two or more pre-made cables together by using a
BNC double female connector (not included).
Because the power portion of the cable is male on one end and female on the other, there is no additional connector needed to connect the power portion of two cables together.
Please note that we DO NOT recommend linking several cables together to create cable long runs longer than 250 feet. This may result in poor or dropped image quality. For cable runs longer than 250 feet, CCTV Camera Pros highly recommends using a
spool of Siamese coax cable. We also supply the needed connectors and tools required to cut Siamese cable and crimp BNC connector ends on. Please see our CCTV Tools page here.
Click here to learn
how-to connect a CCTV camera using pre-made Siamese cables.
pre-made cable specification here.
