BIPRO-EC550VF Outdoor IR CCTV Camera
Outdoor IR CCTV Camera



Alternative Views:


This camera has been discontinued and replaced
Our Price: $299.99


Product Code: BIPRO-EC550VF


Cables:


OSD Controller:


Discontinued
Description


The BIPRO-EC550VF has been discontinued and replaced with the upgraded BIPRO-S600VF12 outdoor CCTV camera. The new camera model provides better overall quality and features.

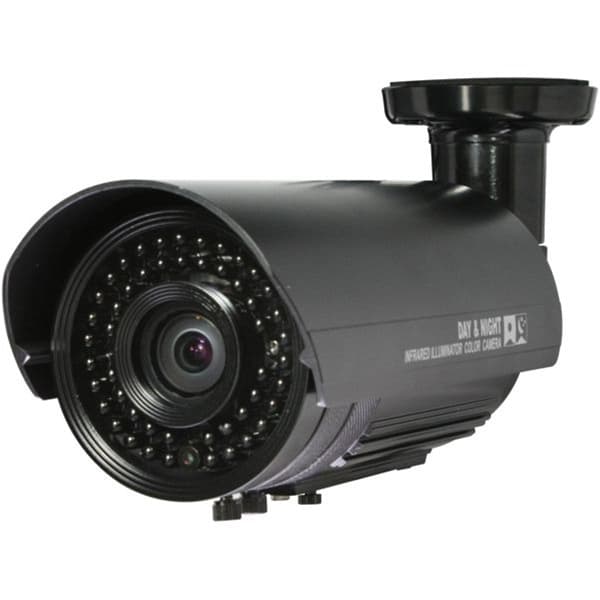

The BIPRO-EC550VF is an outdoor IR CCTV camera with 50 high powered infrared LEDs for day and night vision surveillance. The still shot examples below show this camera's resolution capability. The EC550VF also has a built in IR cut filter which shifts automatically to day and night mode according to the outdoor light level. The IR capability of this camera is up to 132 feet in the dark. This security camera is enclosed in a vandal-proof and weatherproof polycarbonate case and the lens is concealed behind hard coated glass making it a great choice for outdoor surveillance. This camera has a weather proof rating of IP65. The camera power and video cables are concealed in the 3-axis mounting bracket. The 2.8-11mm DC auto iris lens allows you to adjust the angle of view and focus externally on the camera using controls on the exterior of the camera, so that an installer can easily make adjustments after the camera is mounted. This IR CCTV camera has a 1/3" color Sony Super HAD CCD sensor for high resolution surveillance. A cooling fan is mounting inside of the case to keep the camera cool in warm weather. This camera uses a 12VDC power source.

IR CCTV Camera Still Shots

IR CCTV Camera Still Shot 1
IR CCTV Camera Still Shot 2 IR CCTV Camera Still Shot 3
IR enabled, 8:30pm, ambient light from street lamps, front tire of truck is approximately 40-45 feet away.
IR disabled, 8:37pm, ambient light from street lamps, Blue Minivan is approximately 60-65 feet away. IR enabled, 8:39pm, ambient light from street lamps, Blue Minivan is approximately 60-65 feet away.


Camera OSD (On Screen Display)

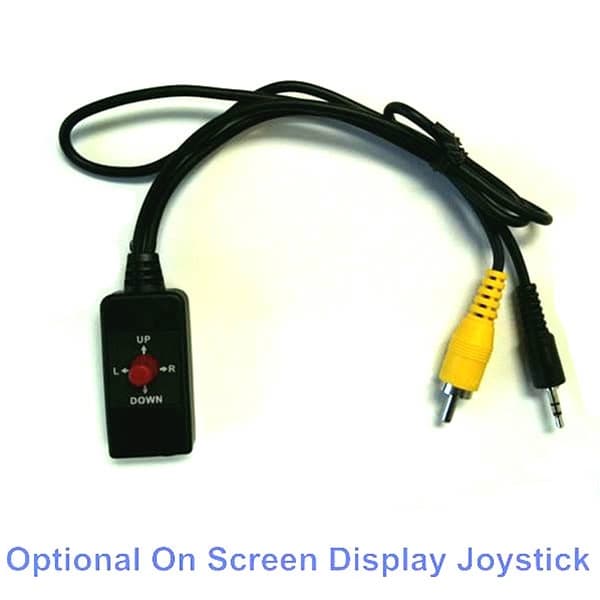

The latest generation BIPRO-EC550VF (released 10/20/09) is now equipped with a digital on screen display (OSD) menu which enables the installer to control adjustments to this camera for brightness, exposure, shutter speed, back light compensation, wide dynamic range function, privacy mask, motion detection, and mirror functions using an optional OSD controller / joystick that can be purchased with this camera. To see a picture of this controller, please click on the alternative image view at the top of this page. Is is not necessary to purchase a joystick for each camera. We recommend purchasing one joystick / controller for all of the EC550VF cameras that you purchase for your CCTV system.

CCTV Camera OSD Manual
CCTV Camera OSD Manual

The new version of the BIRPO-EC550VF also include WDR (wide dynamic range) functionality which helps to compensate for fluctuations in light levels between background and foreground areas of the video surveillance view.


IR CCTV Camera Specification

Please click on the below image to view the CCTV camera specification.
Outdoor IR Camera Specification
Features
  • Black Weatherproof casing for outdoor IR surveillance - IP65 Rated
  • 550 Lines of resolution
  • 50 infrared LEDs plus IR Cut Filter support night vision up to 132 feet
  • 1/3" Color Sony Super HAD CCD Sensor
  • 2.8-11mm varifical DC auto-iris lens Adjusted externally
  • Wide Dynamic Range Function
  • Built In Cooling Fan
  • 3-Axis Cable Concealed Mounting Bracket
  • Split Glass Technology Eliminates IR Reflection
  • New On Screen Display Menu (OSD) to control
  • Optional OSD external Joystick for easy OSD configuration
  • Bracket & Power Supply Included
  • DC Voltage (DC12)
