Continuous Recording Setup for New Generation iDVR-E CCTV DVR

New Generation iDVR-E Continuous Recording Setup
The instructions featured in this article explain how to setup continuous recording for the latest version of the iDVR-E surveillance DVR. If the instructions below do not match your iDVR-E, please refer to the legacy version of the continuous recording setup article - Legacy iDVR-E Recording Setup.

Continuous Recording Setup Instructions

Please follow the instructions below to setup continuous recording on the latest version of the iDVR-E CCTV DVR.

  1. First press the Menu button on your iDVR-E and select Setup. (Shown Below)

    2. iDVR-E Continuous Recording Setup

  2. Now scroll over and select the Record icon. (Shown Below)

    3. iDVR-E Continuous Recording Setup

  3. On the Record menu, select the Day tab. (Shown Below)

    4. iDVR-E Continuous Recording Setup

  4. Now under the Event tab, make sure that the F/S (Frames Per Second) is set to Off. Then under the Continuous tab, switch F/S to 30 to enable continuous recording. (Shown Below)

    5. iDVR-E Recording Setup

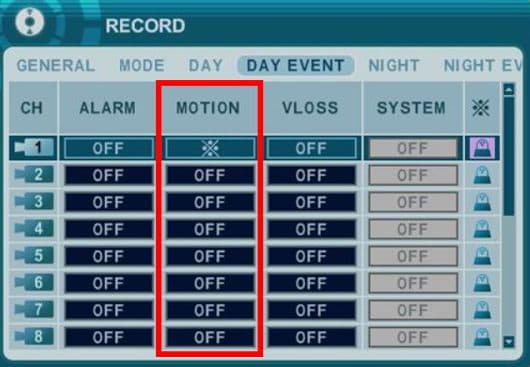

  5. Next, go over to the Day Event tab and make sure Motion is set to Off on all of the cameras you would like to record continuously. (Shown Below)

    6. Continuous Recording Setup iDVR-E


iDVR CCTV DVRs

These instructions apply to the following model CCTV DVRs: iDVR-E4, iDVR-E8, iDVR-E16, and iDVR-RT16. Click here of on the image below to learn more about these video surveillance DVRs.
